Upgrading your Audi Q5 or SQ5 (2018–2025) with our OEM Design Dynamic LED Ambient Light Kit will completely transform your interior into a premium, modern driving space.
This step-by-step installation guide will walk you through the full process.
Compatibility
Audi Q5 / SQ5 2018–2025
Audi Q5 / SQ5 2025 interior photos and changes included
Supports factory-style dynamic multi-color ambient lighting

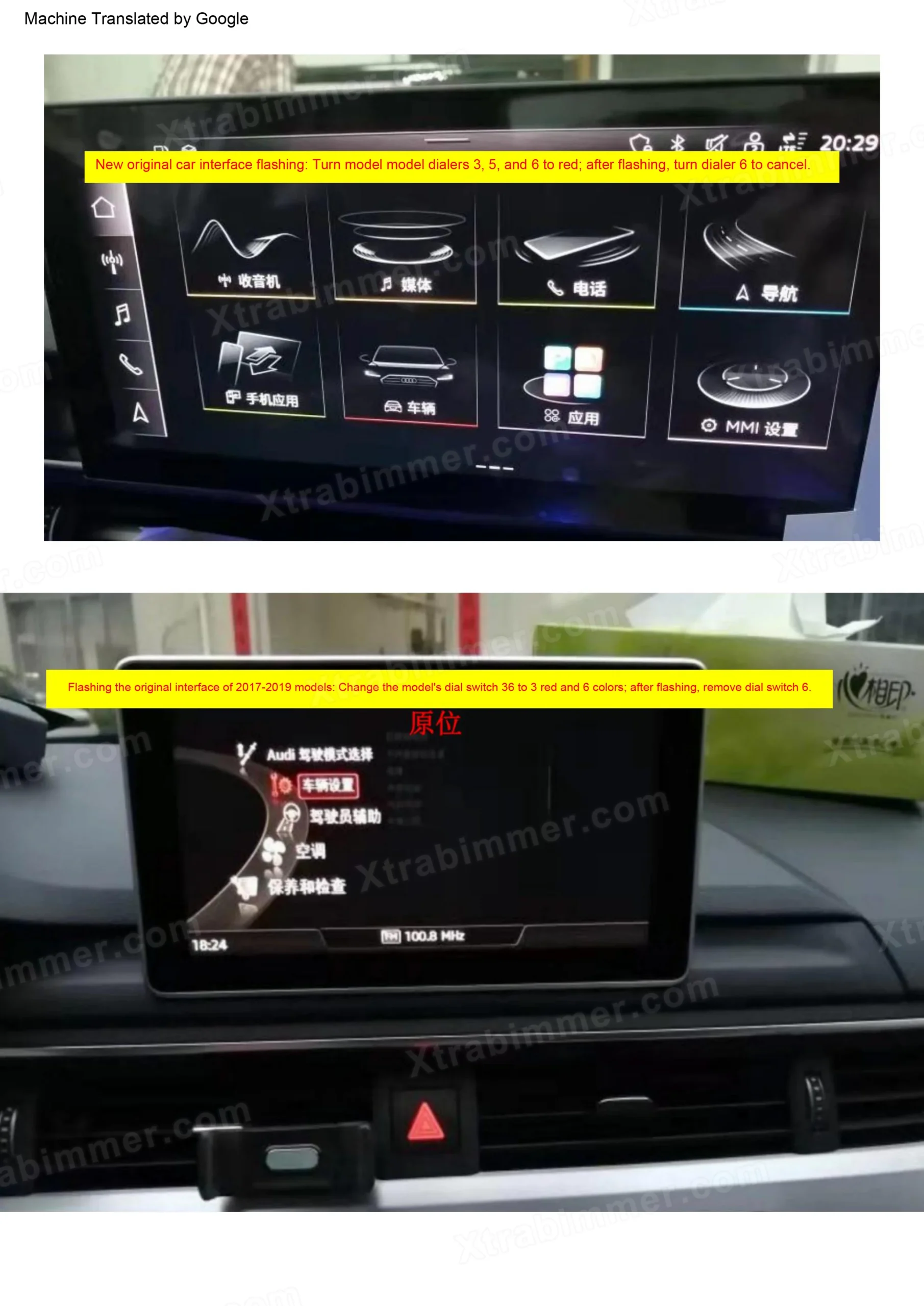

Compatible with MMI menu control (coding required for some models)
Works with Audi illuminated rings Q5 / SQ5
Tools Required
Plastic trim removal tools
Torx screwdriver set
Socket wrench set
Electrical tape
Laptop (if manual coding is required)

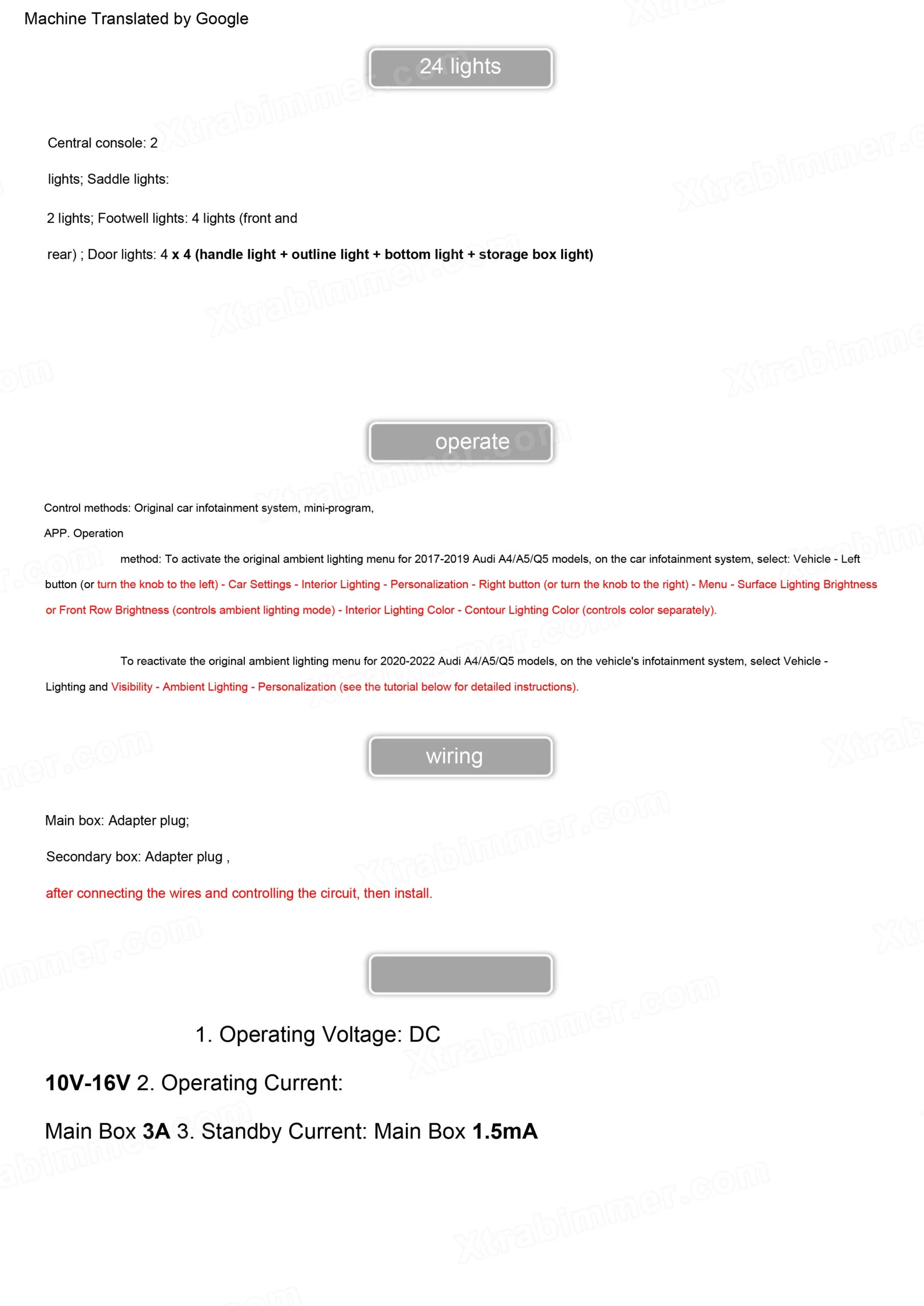

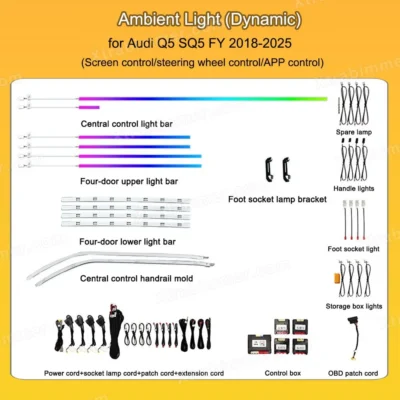

What's Included in the Kit:
If not, you can buy it in this link :Audi Q5 SQ5 2018-2025 OEM Design Dynamic Active LED Ambient Light.
Step-by-Step Installation Guide

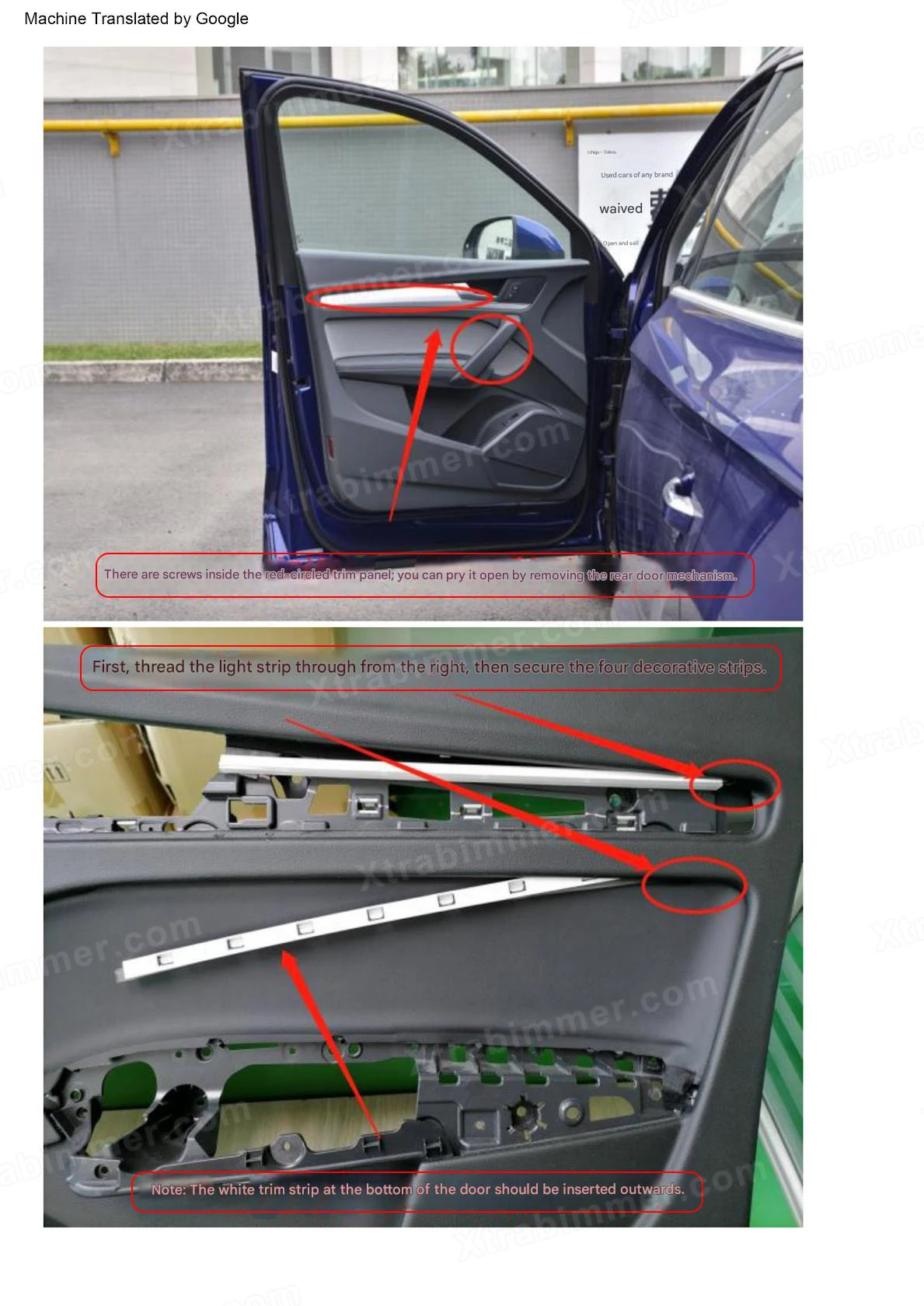

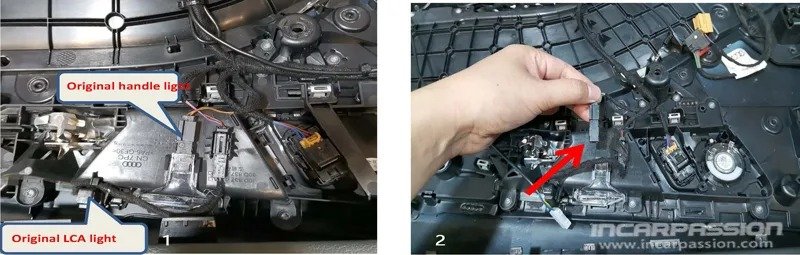

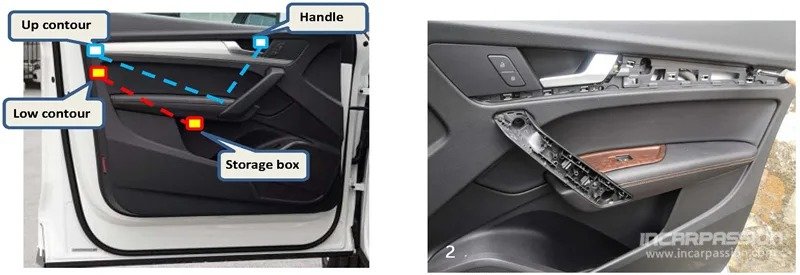

Handle light installation for car with original lane change assist system
1, If car come with LCA light, all the LCA light can not disconnect
2, Disconnect original handle light
3, Cut the product handle light round point a little

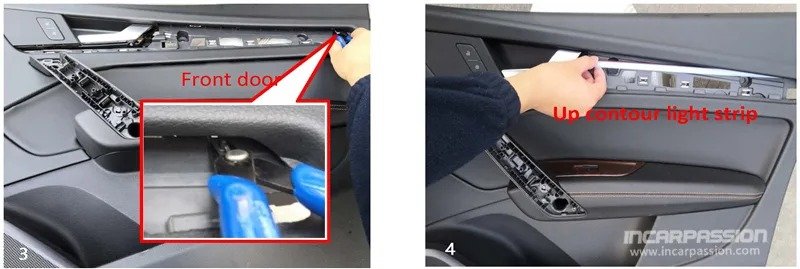

4, Fix product handle light to original handle light upper position
Saddle Light Installation

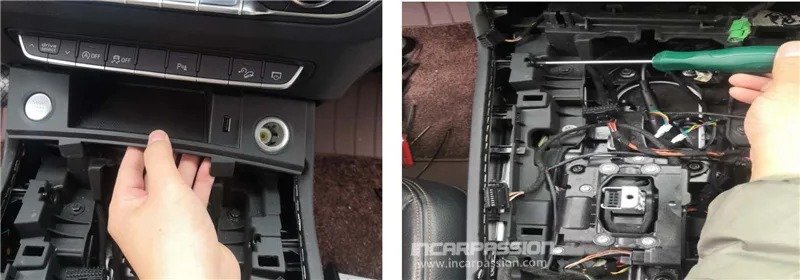

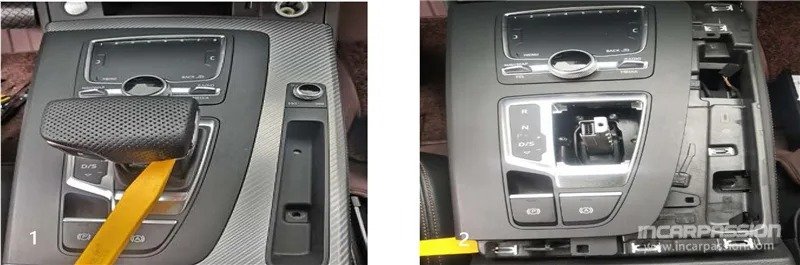

1, Open gear shifter cover and remove the screw inside
2, Pry out panel
3, Pry out decoration board
4, Remove both side screws

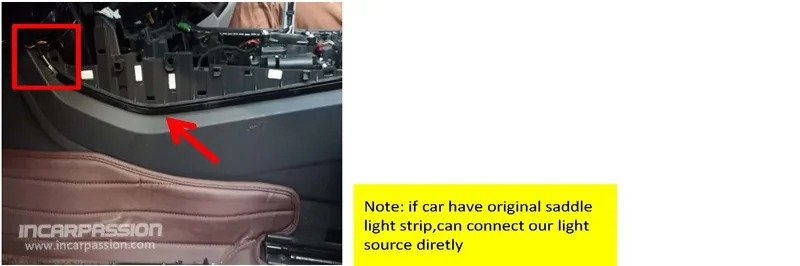

5, Fix the saddle light strip to original saddle position and connect the light source

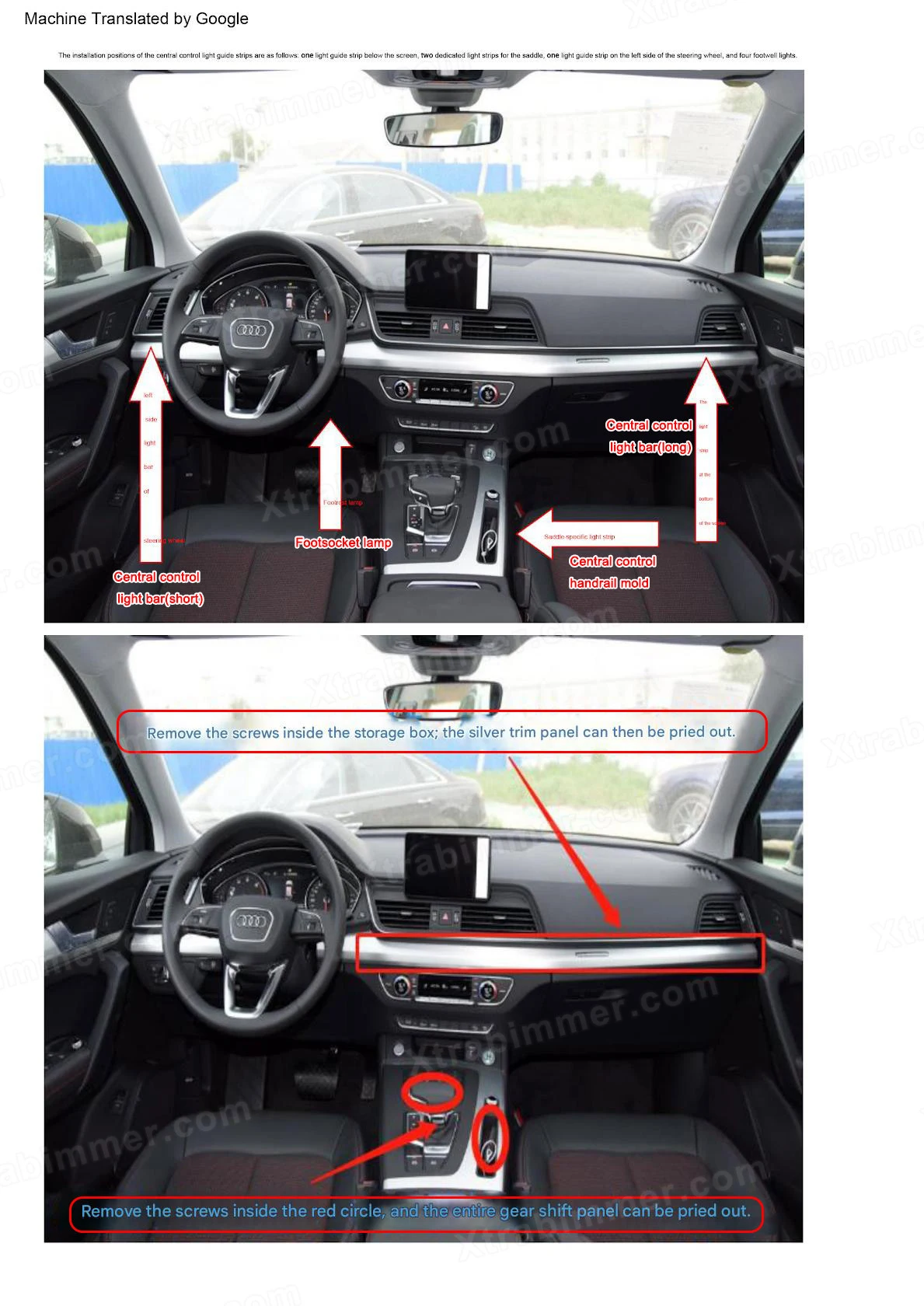

Dashboard light installation

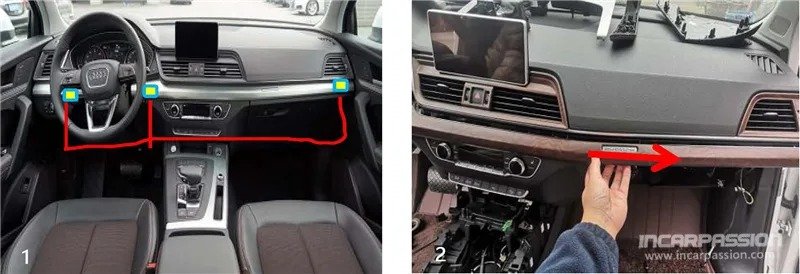

1, LED source installation position
2, Remove dashboard panel screws

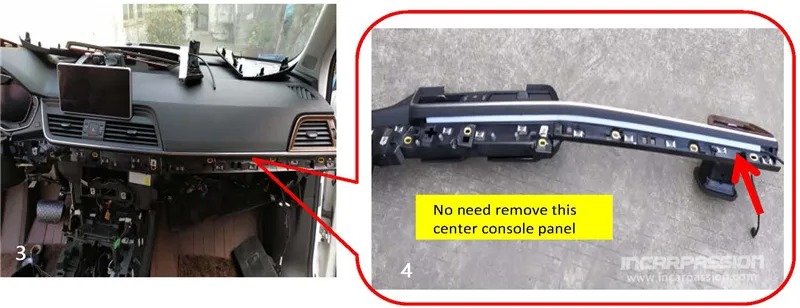

3,4: Install light strip to original slot

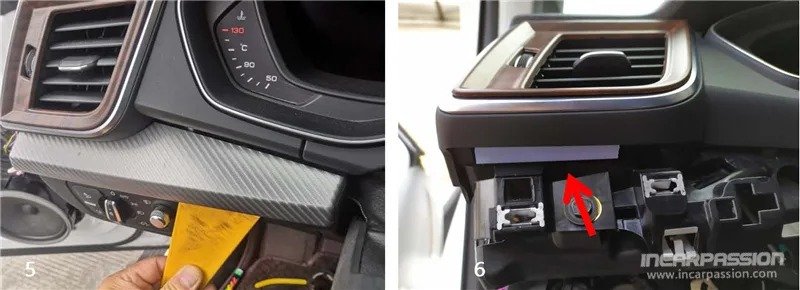

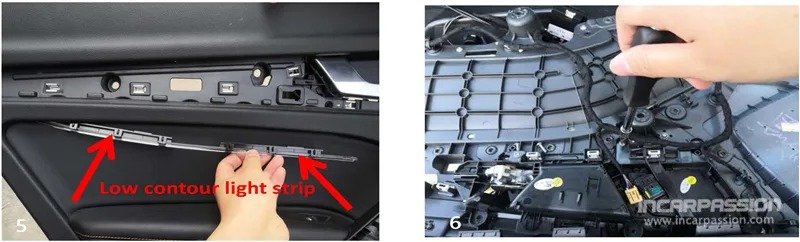

5, Pry out decoration panel
6, Install light strip to original slot

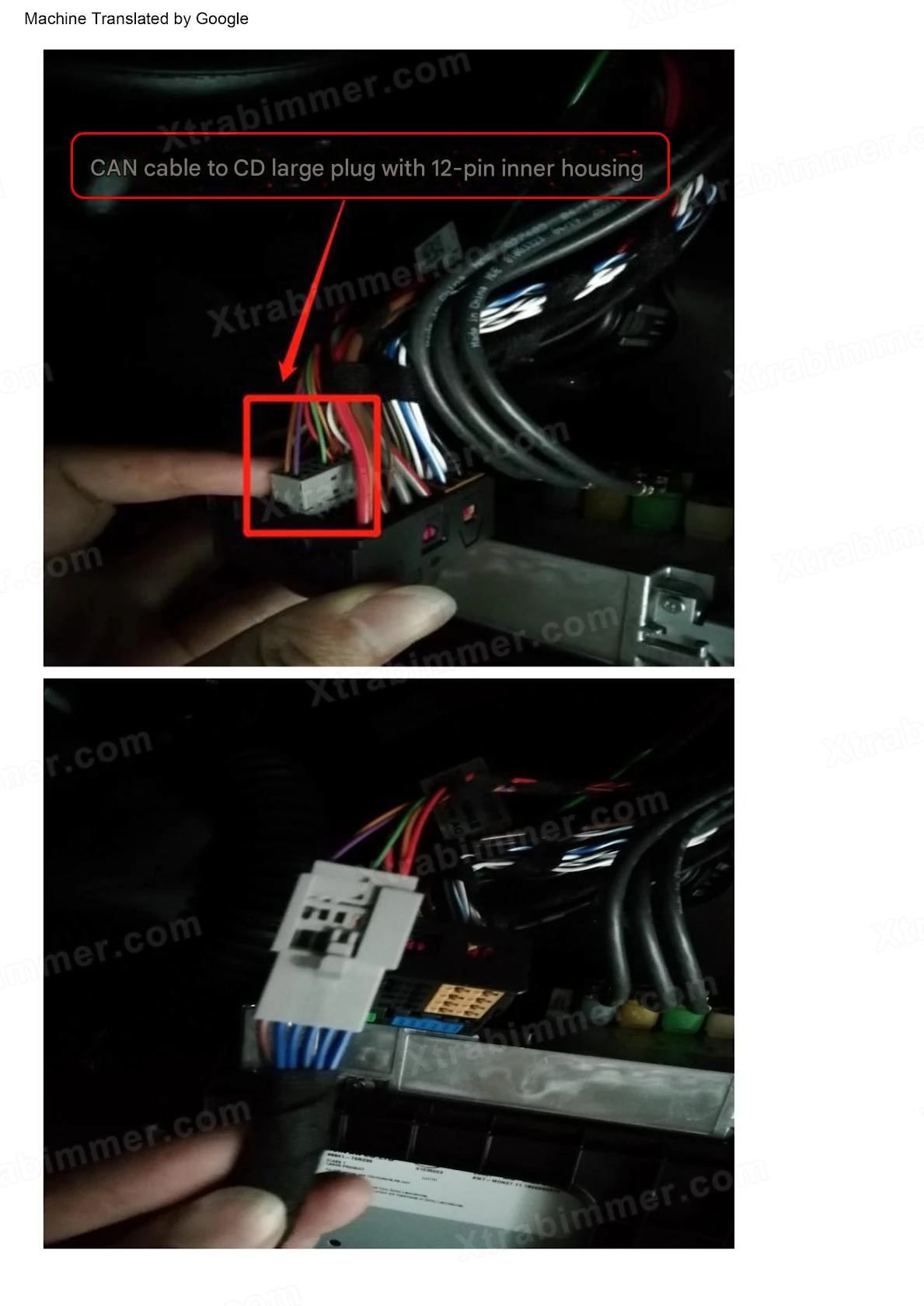

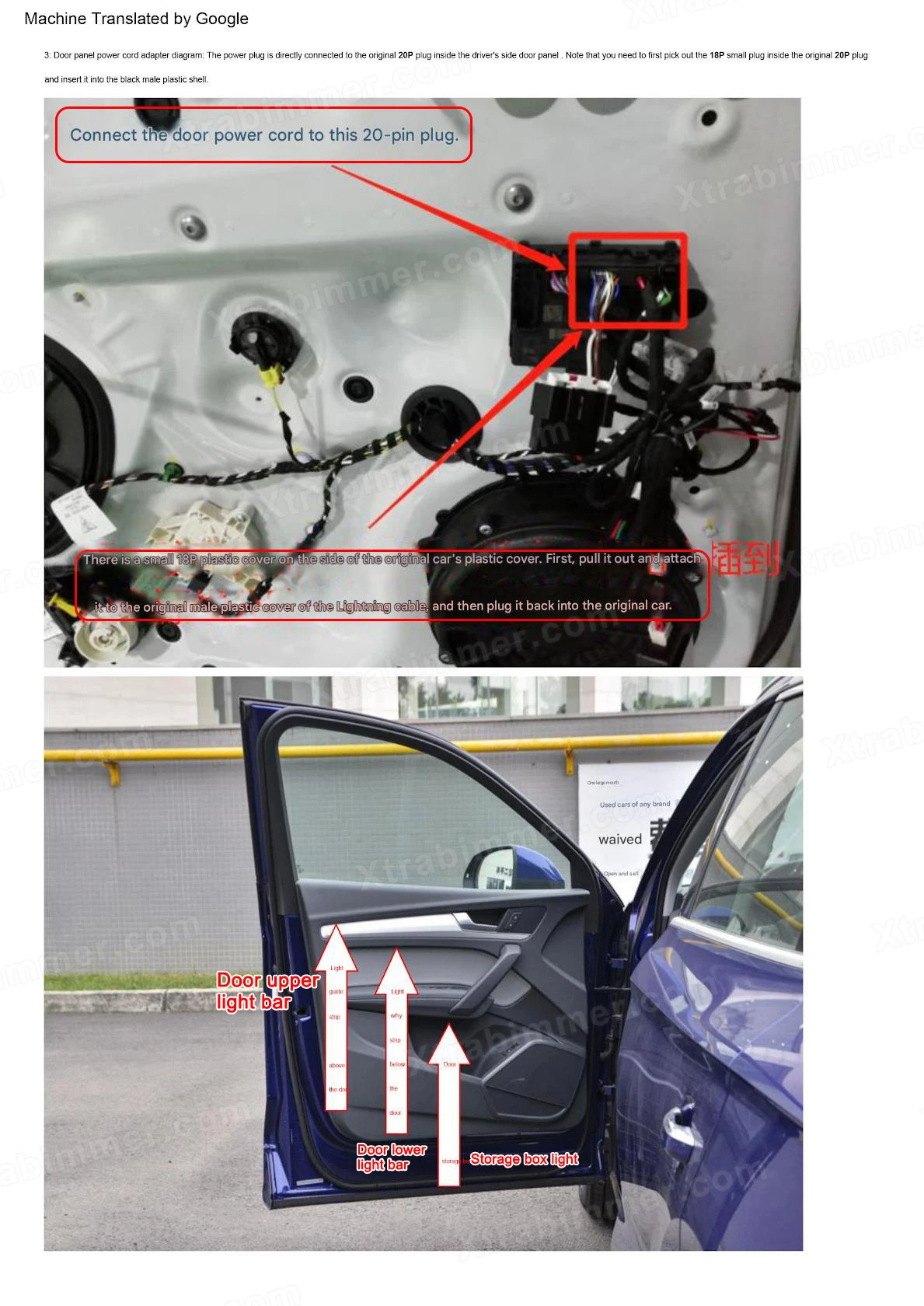

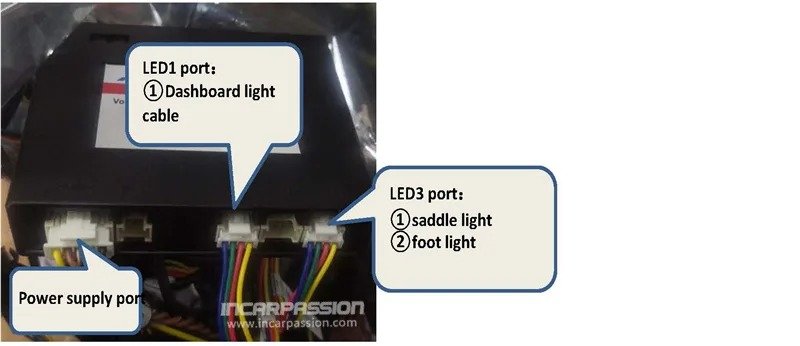

Power /CAN cable connection

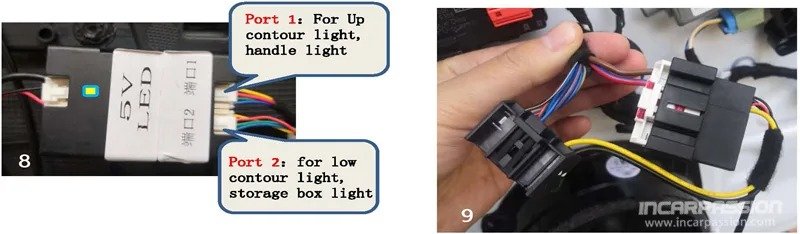

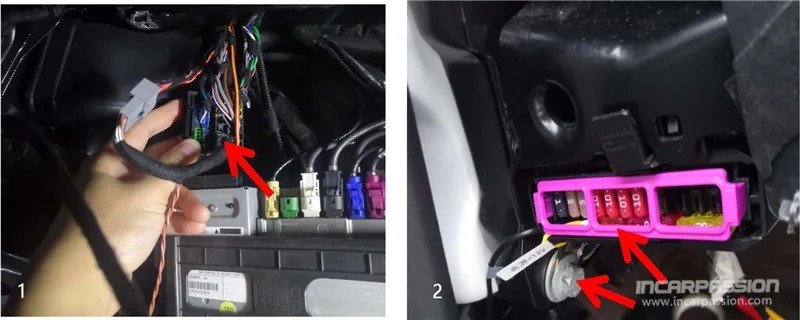

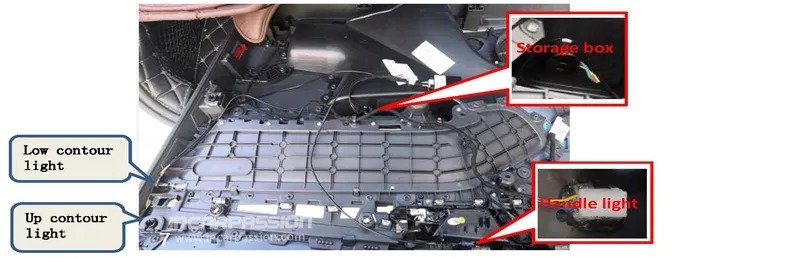

1, Remove original storage box, take out original 12PIN grey socket, connects to product CAN cable
2, Connect product power fuse to driver side fuse box BATT position, GND cable to car body

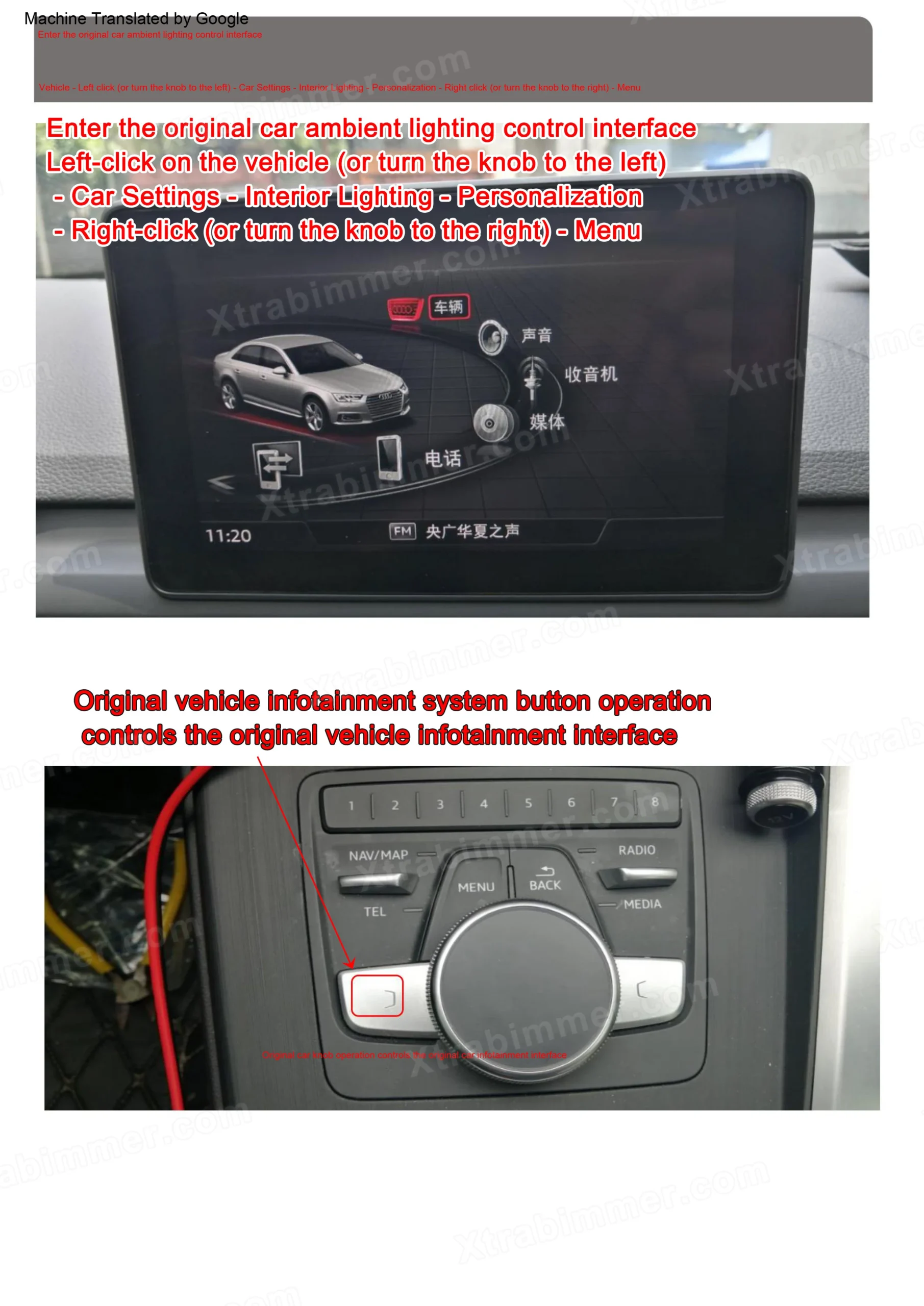

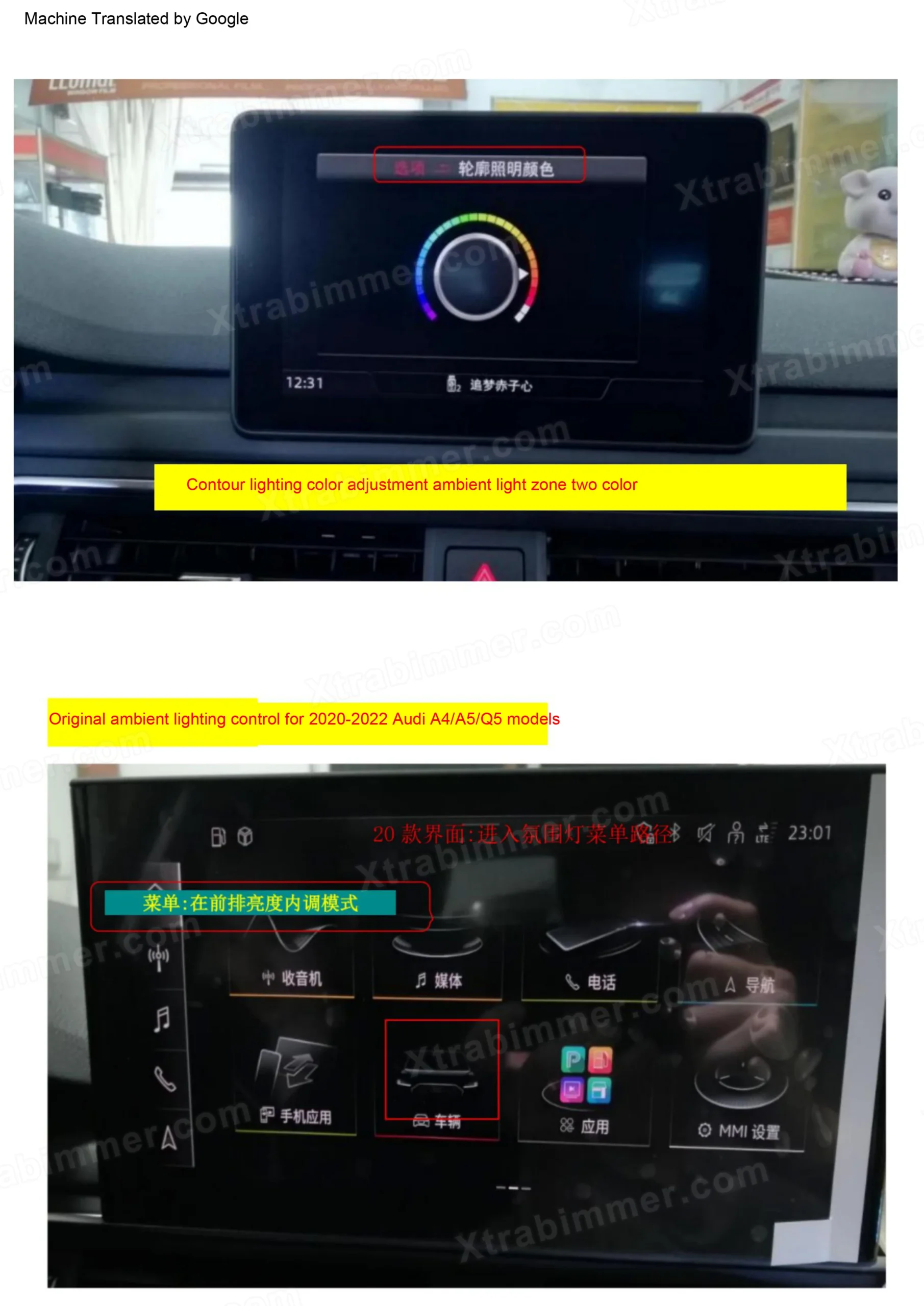

Ambient light menu operation

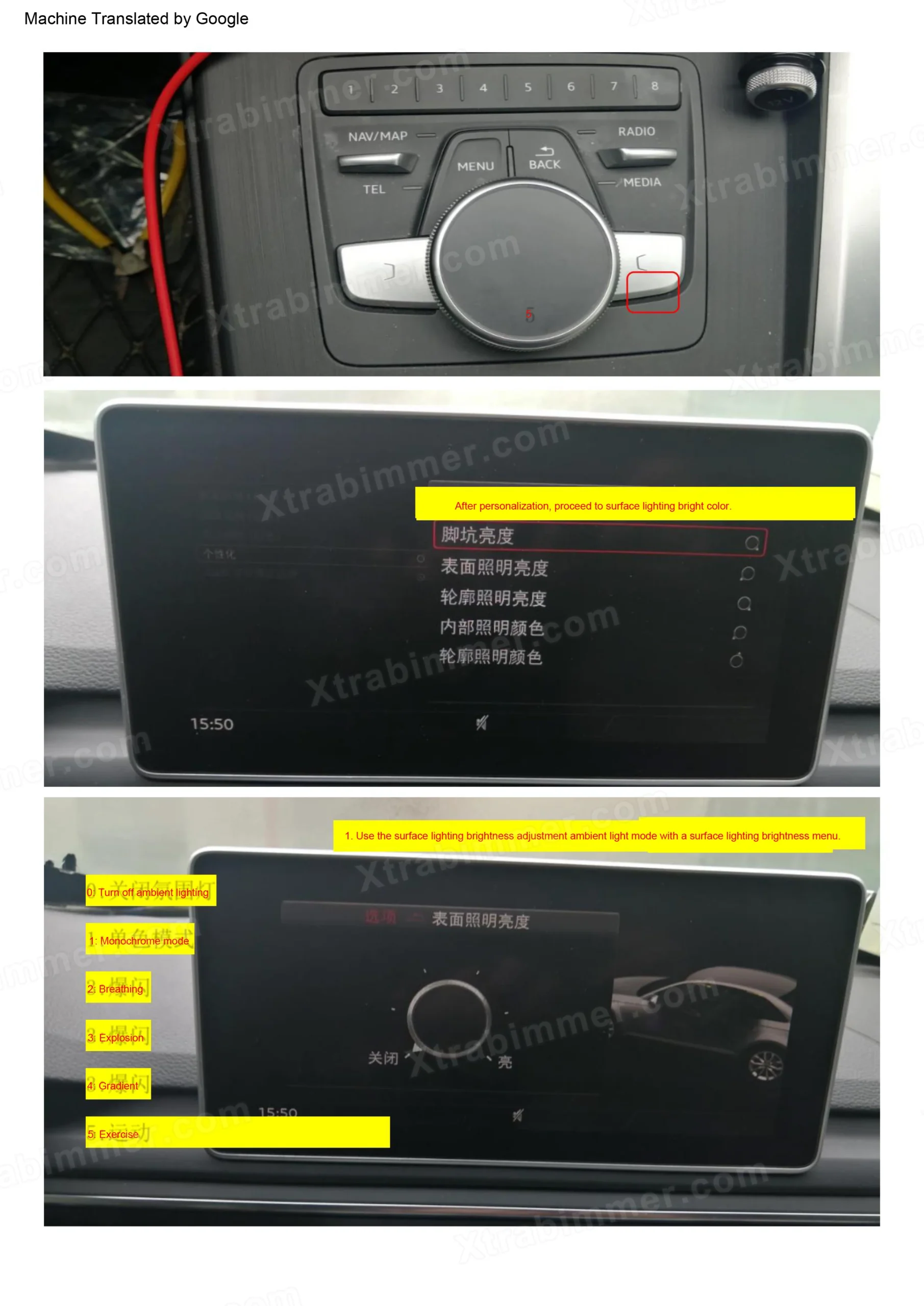

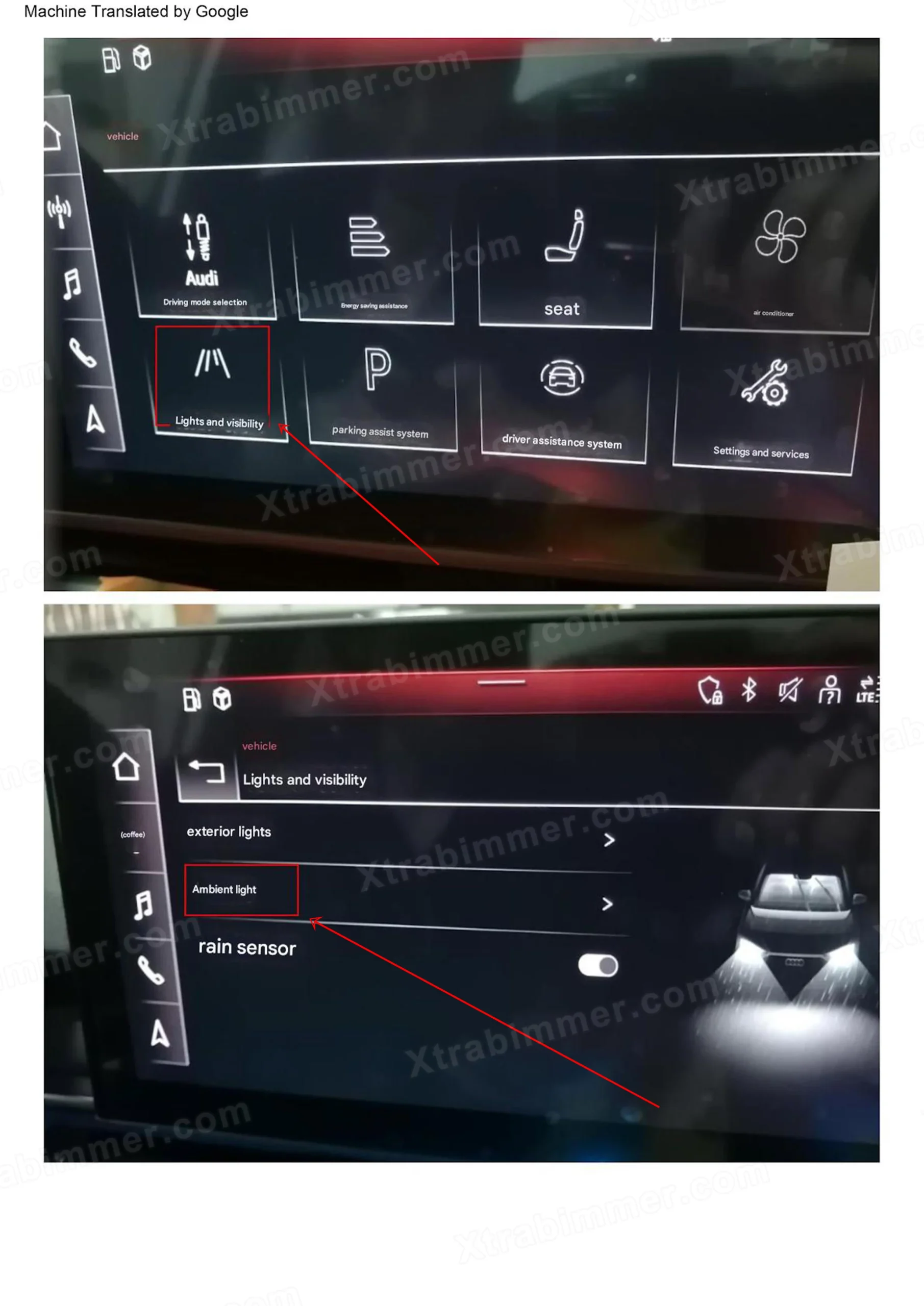

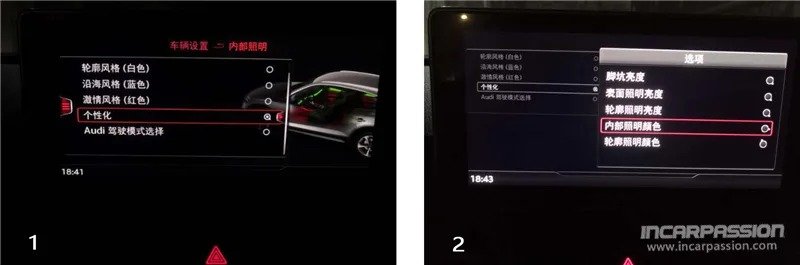

1, Setting-Interior Light-Personal

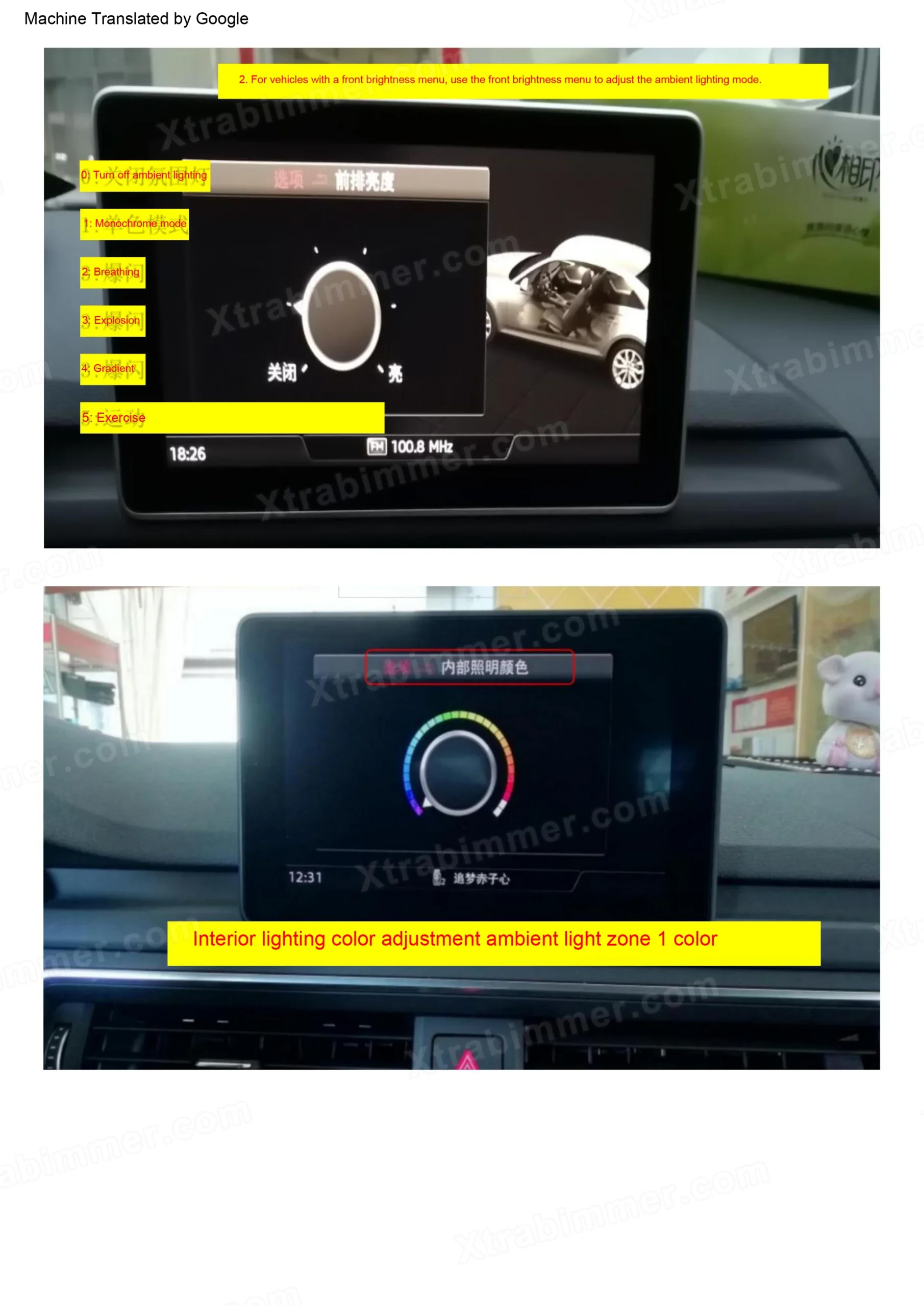

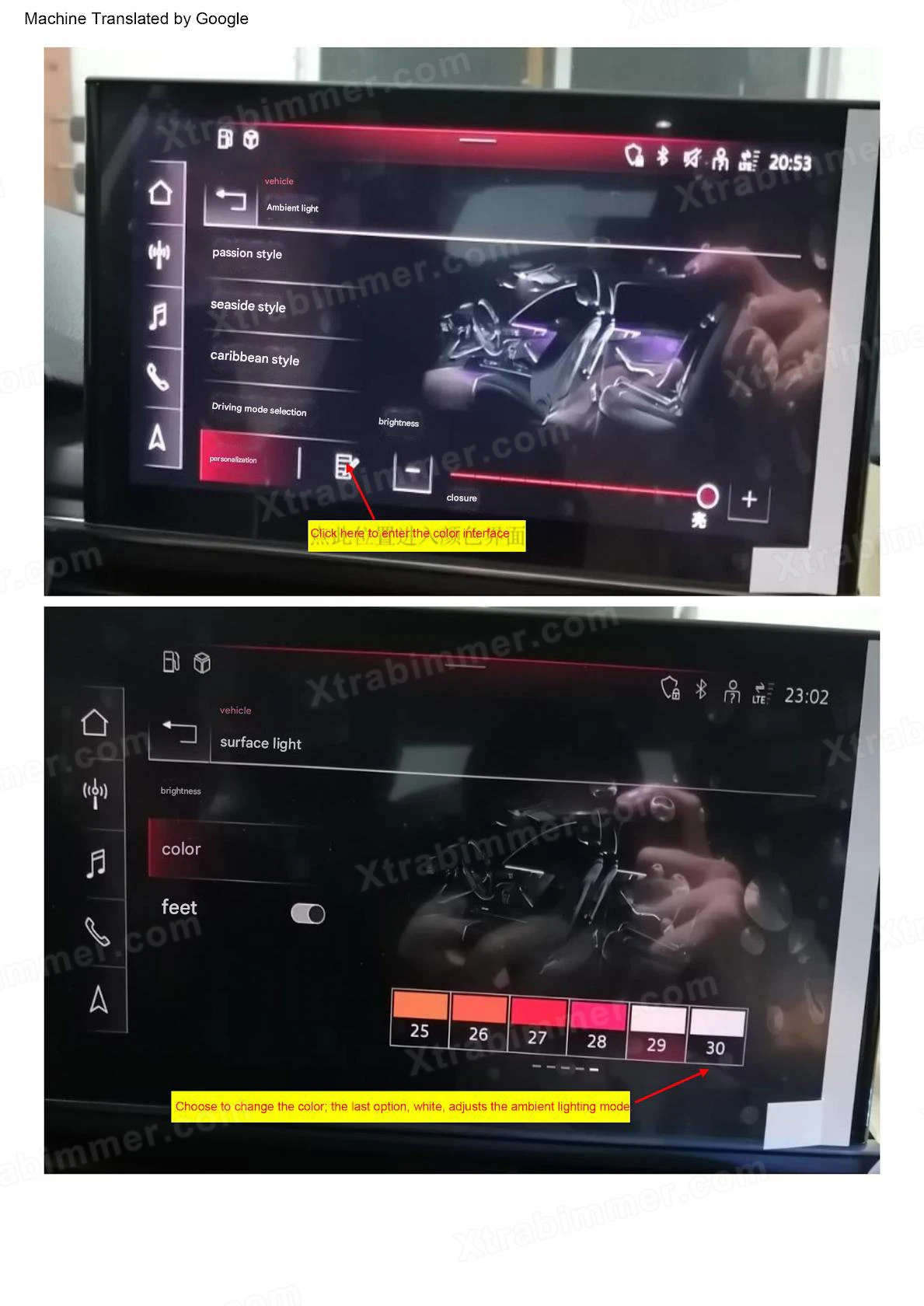

2, Choose Interior Light/Contour Light to adjust ambient light color

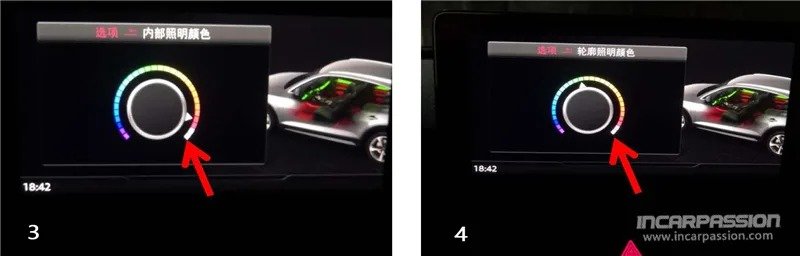

3, 4: Breathing Mode: Choose last whtie color in Interior light and contour light menu then wait 40 seconds, ambient light will change color automatically
Test & Restore

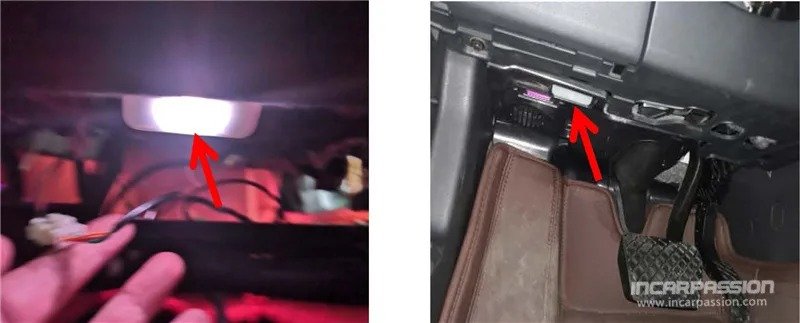

1, Turn on car, check if all light works, if all lights not work, check if power cable is connected correctly and cable is connected correctly.
2，Brightness is dark, check if the led diodes is plug to light strip correctly.
3， After check all function works correctly, restore the car

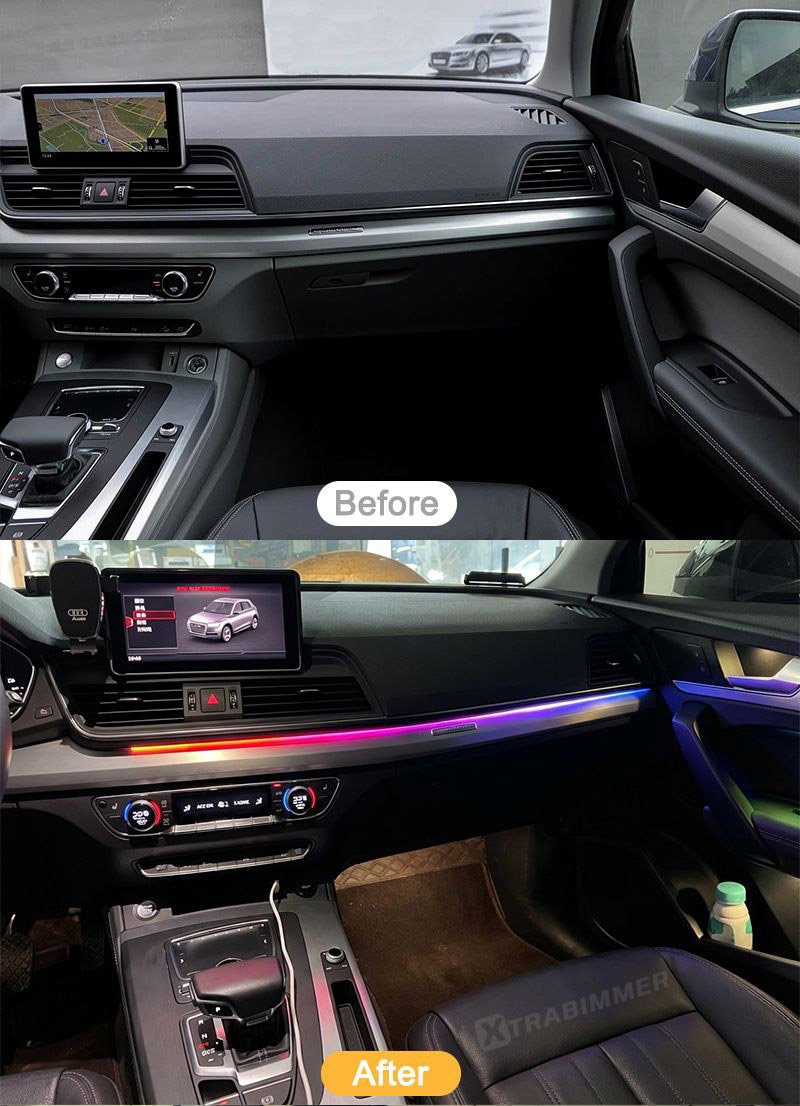

Final Result
After installation, your Audi Q5 / SQ5 2018–2025 interior will feature:
OEM-style dynamic multi-color ambient lighting
Smooth color transitions
Factory MMI control integration
Luxury, modern driving atmosphere
This is an ideal upgrade for those looking at Audi Q5 / SQ5 for sale or Audi Q5 / SQ5 price Australia comparisons, as it improves interior aesthetics and value.
Installation Time
Estimated Time: 4–6 hours
Difficulty Level: Moderate
Professional installation recommended if no prior experience.
