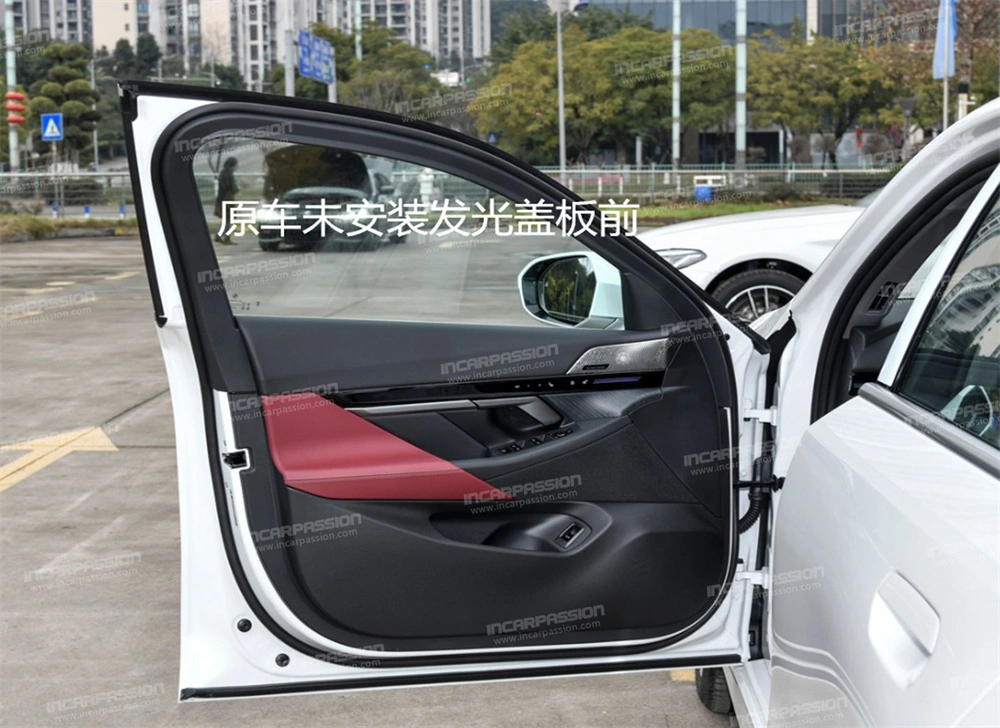

- 1. Before installing the ambient cover
-
- 2. Use a pry – plate to pry open the triangular position of the original car
-

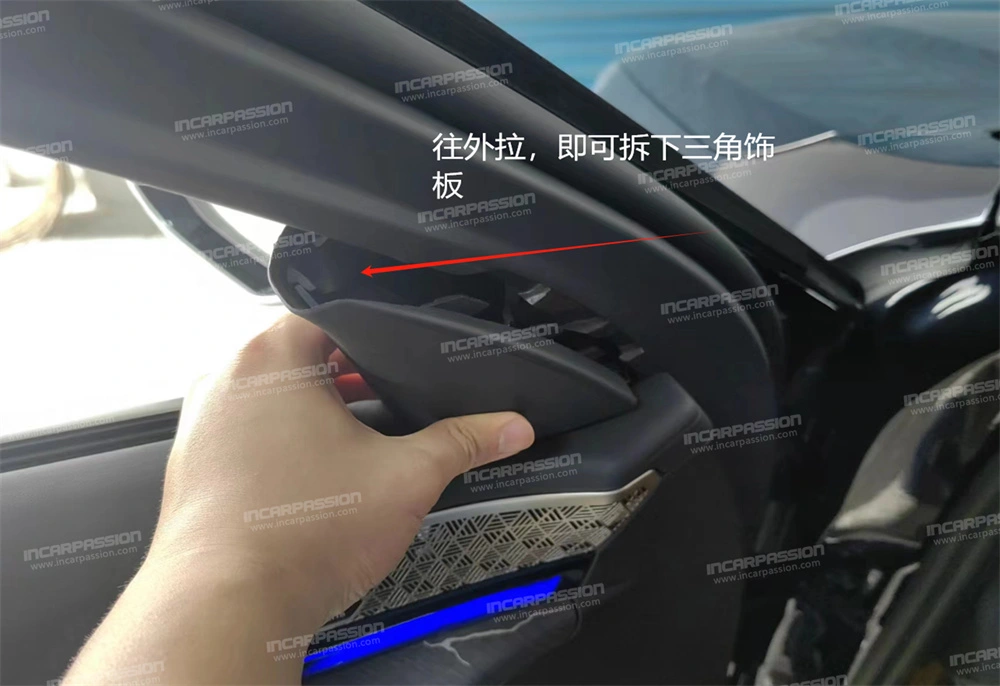

- 3. Pull it outwards to remove the triangular trim panel
-

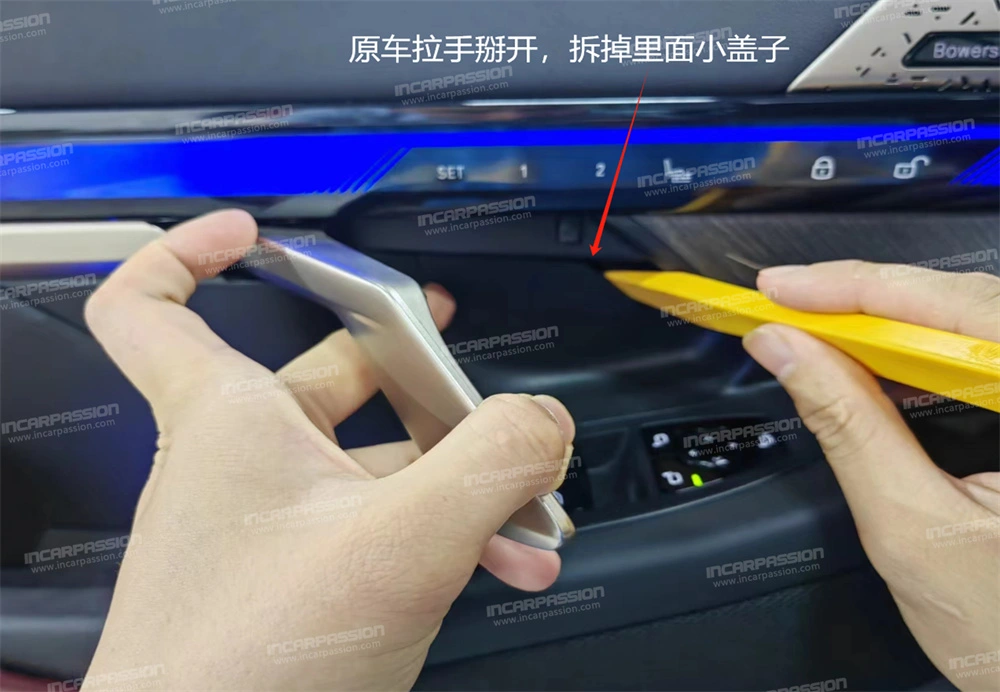

- 4. Open the original car door handle and remove the small cover inside
-

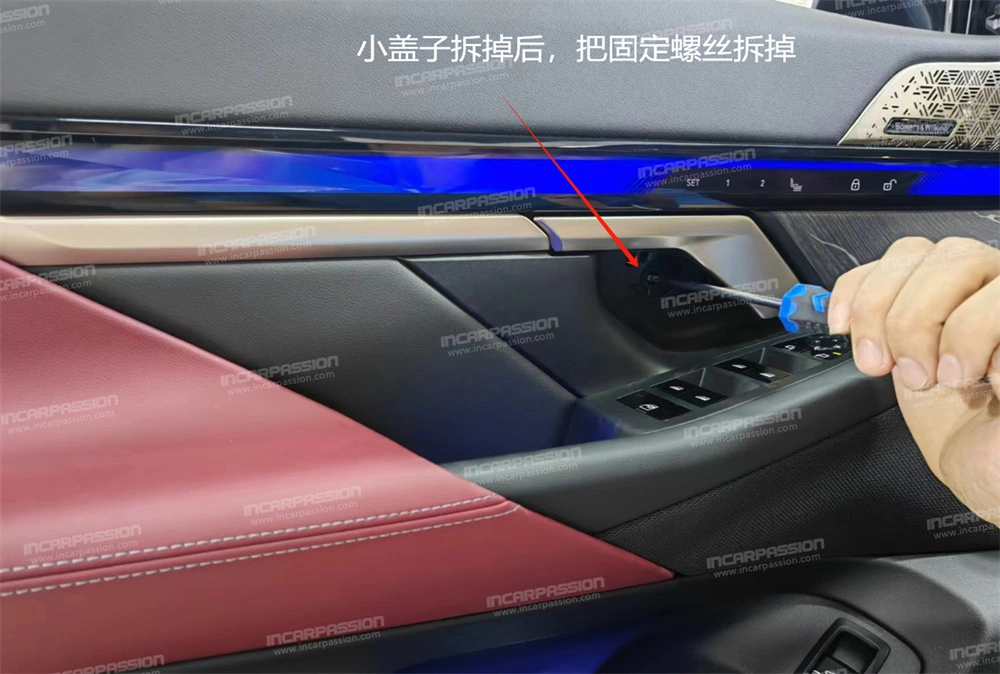

- 5. After removing the small cover, remove the fixing screw
-

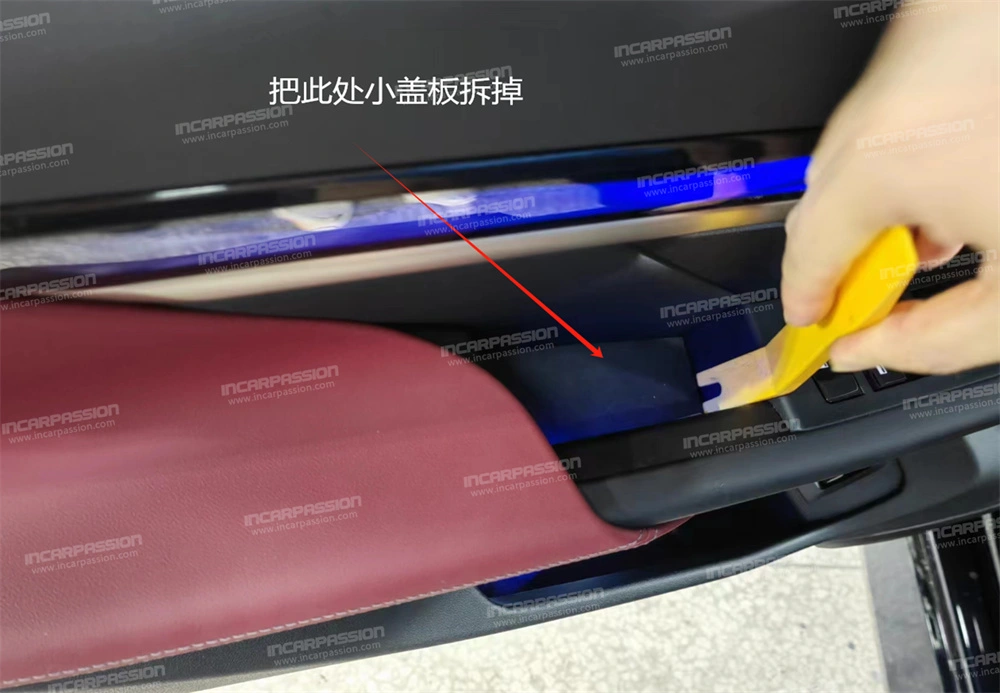

- 6. Remove the small cover plate here
-

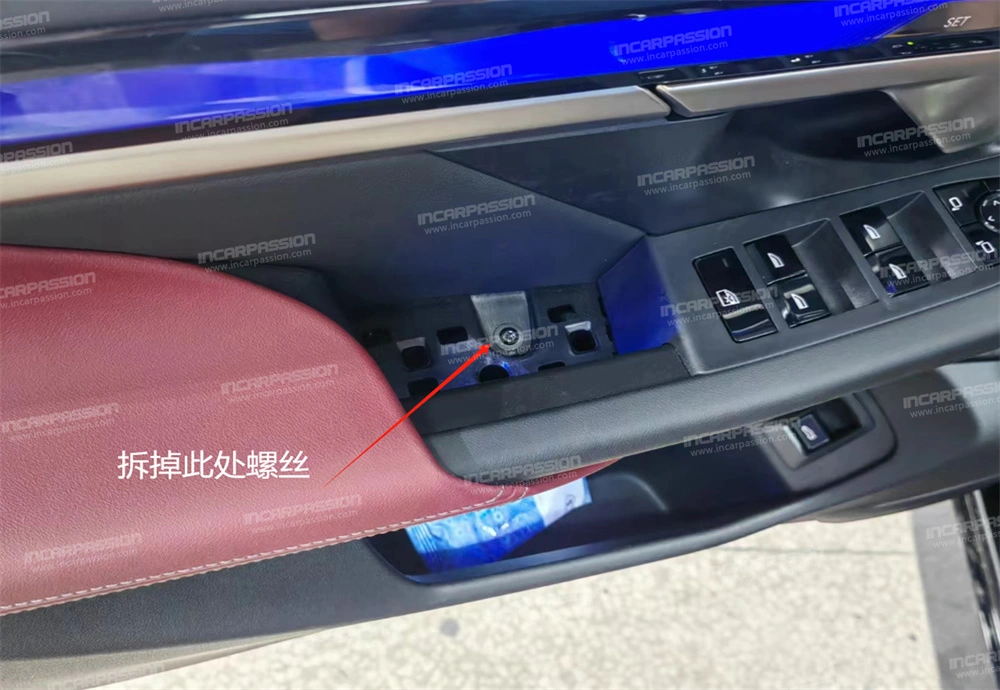

- 7. Remove the screw here
-

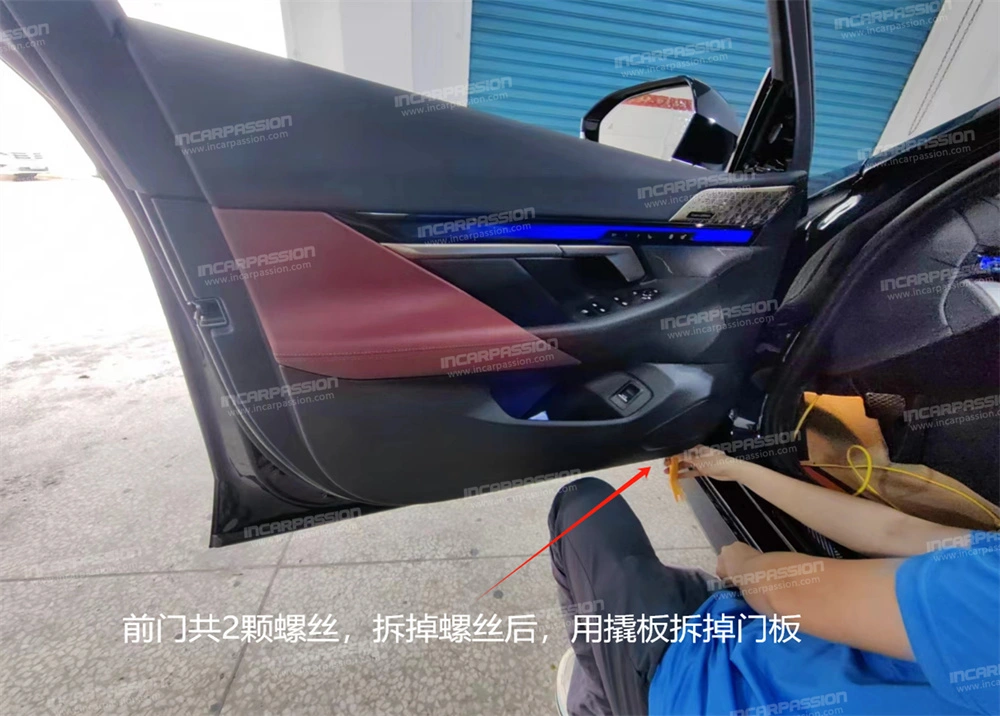

- 8. There are 2 screws in total on the front door. After removing the screws, use a pry – plate to remove the door panel
-

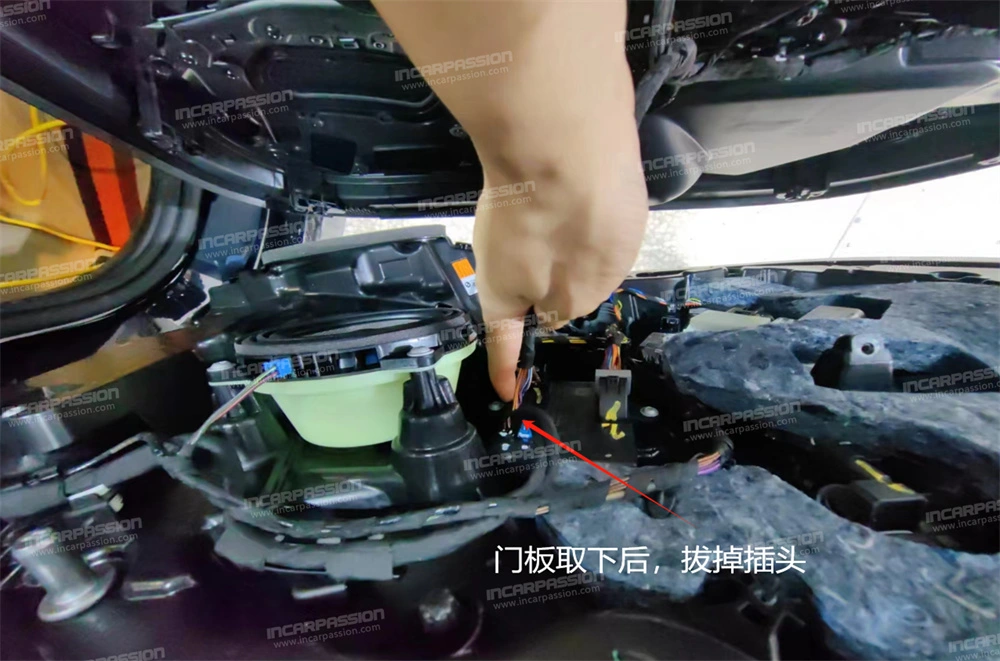

- 9. After removing the door panel, unplug the connector
-

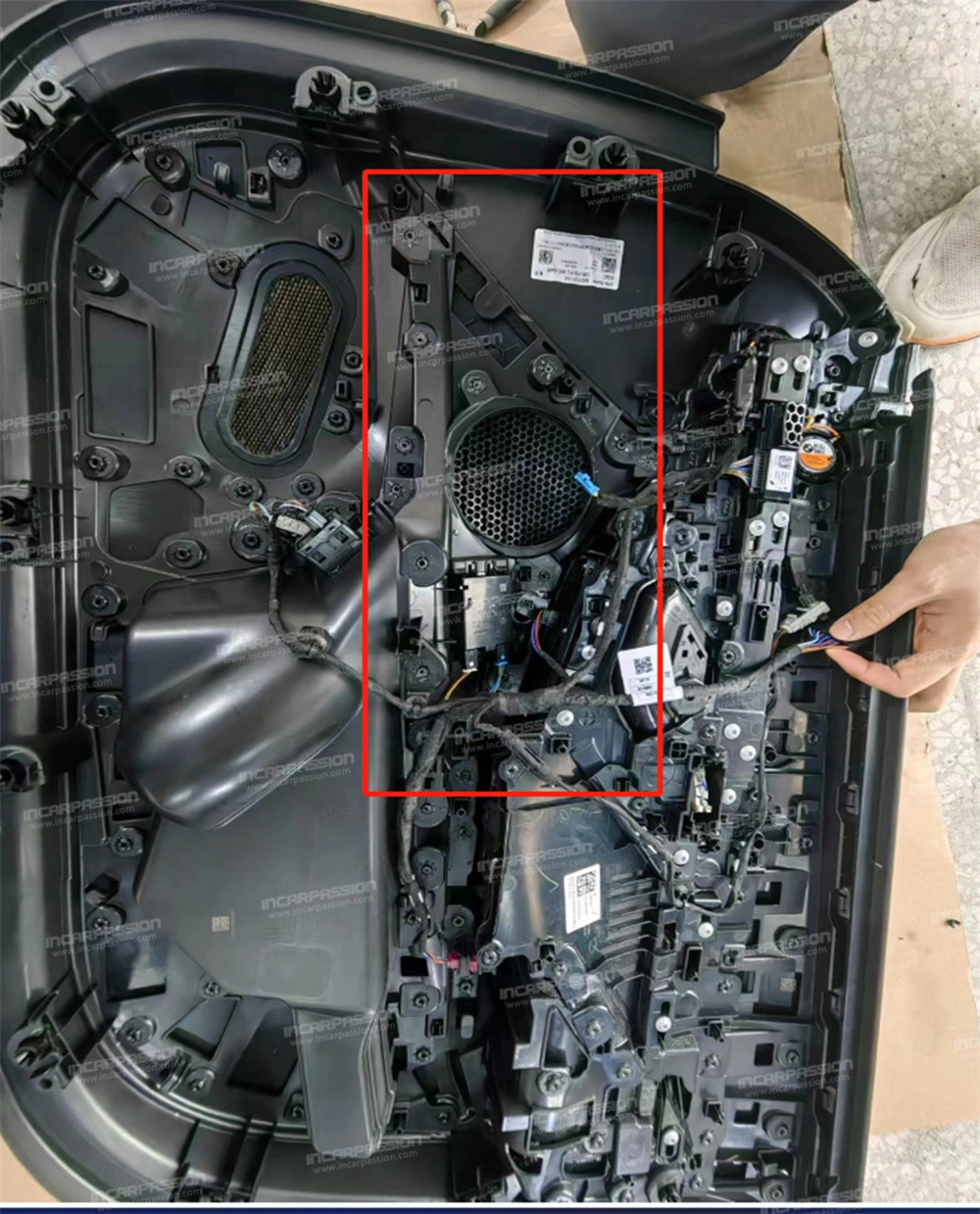

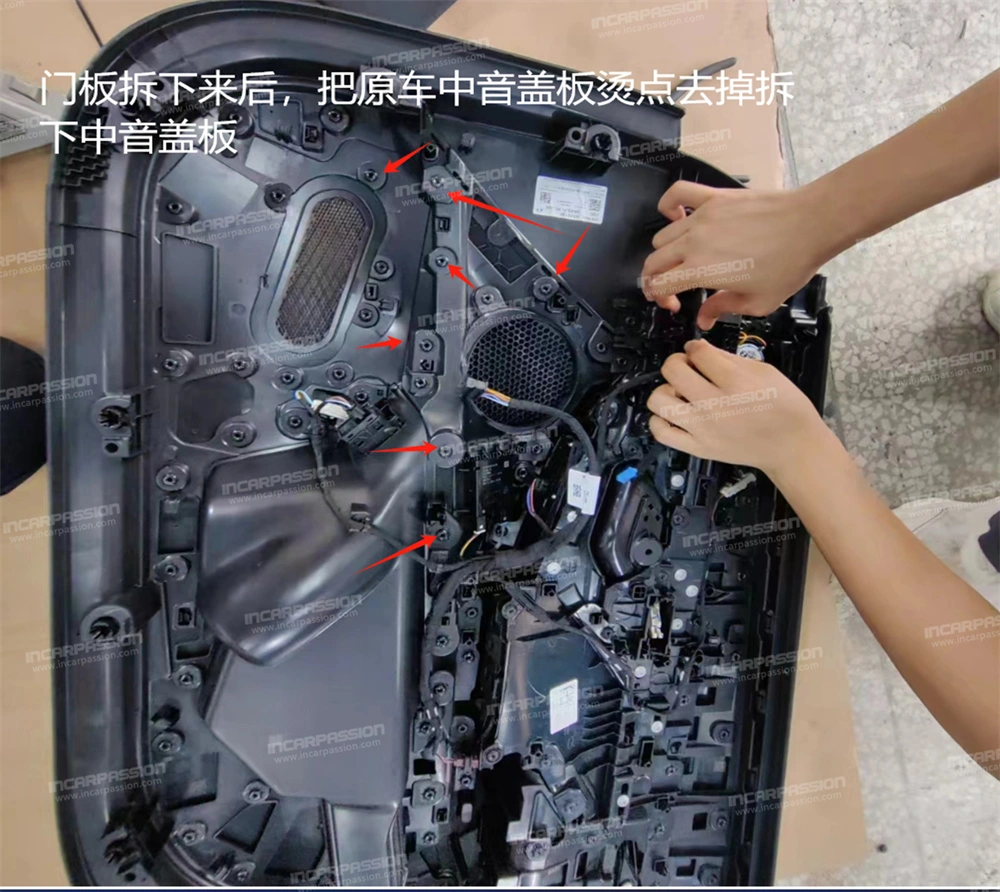

- 10. After removing the door panel, remove the heat – staked points of the original car’s mid – range speaker cover and take off the mid – range speaker cover.
-

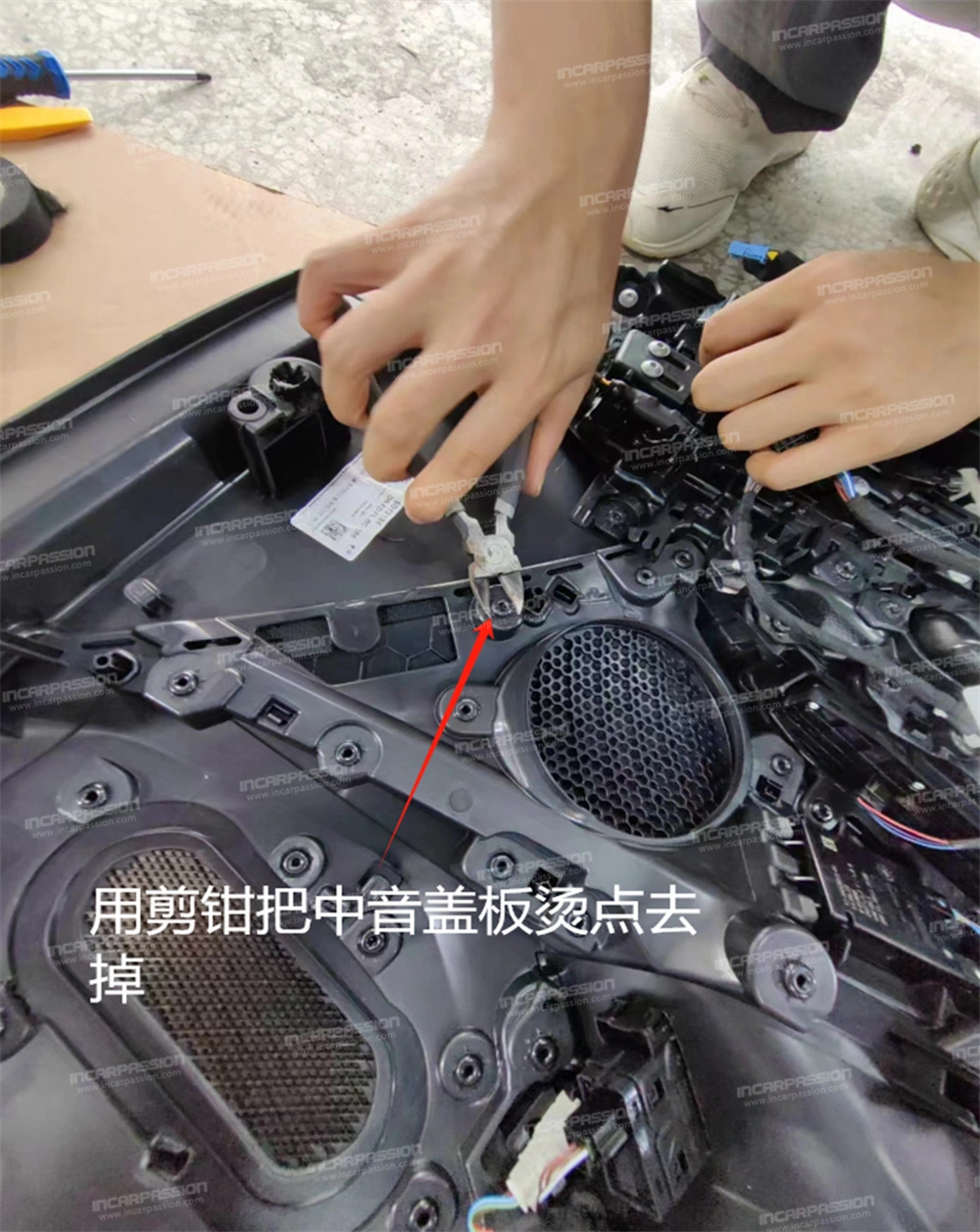

- 11. Use wire cutters to remove the heat – staked points of the mid – range speaker cover
-

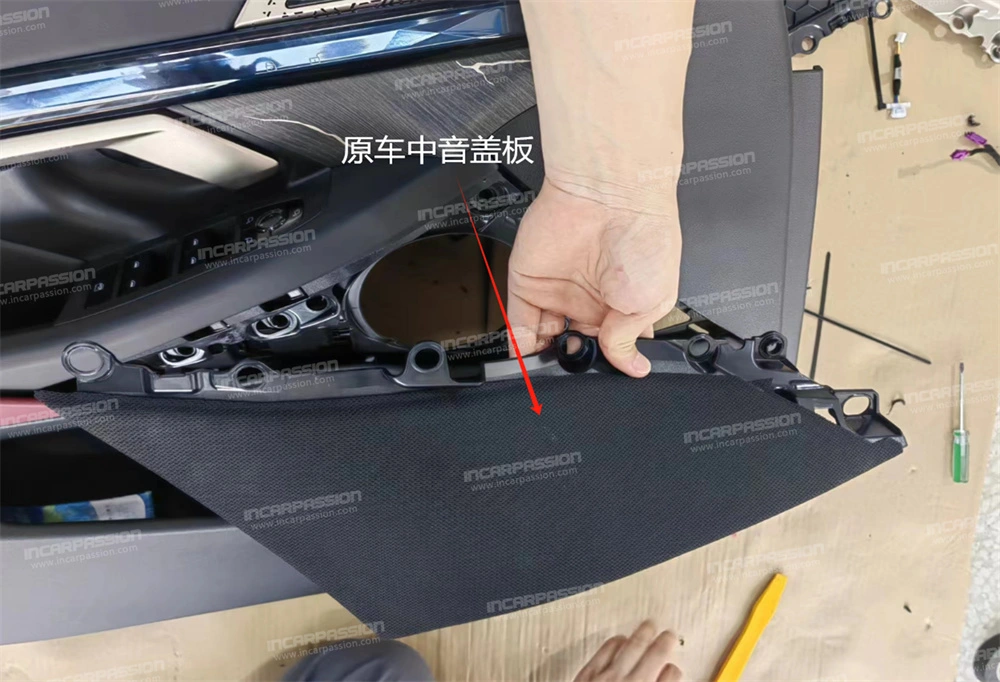

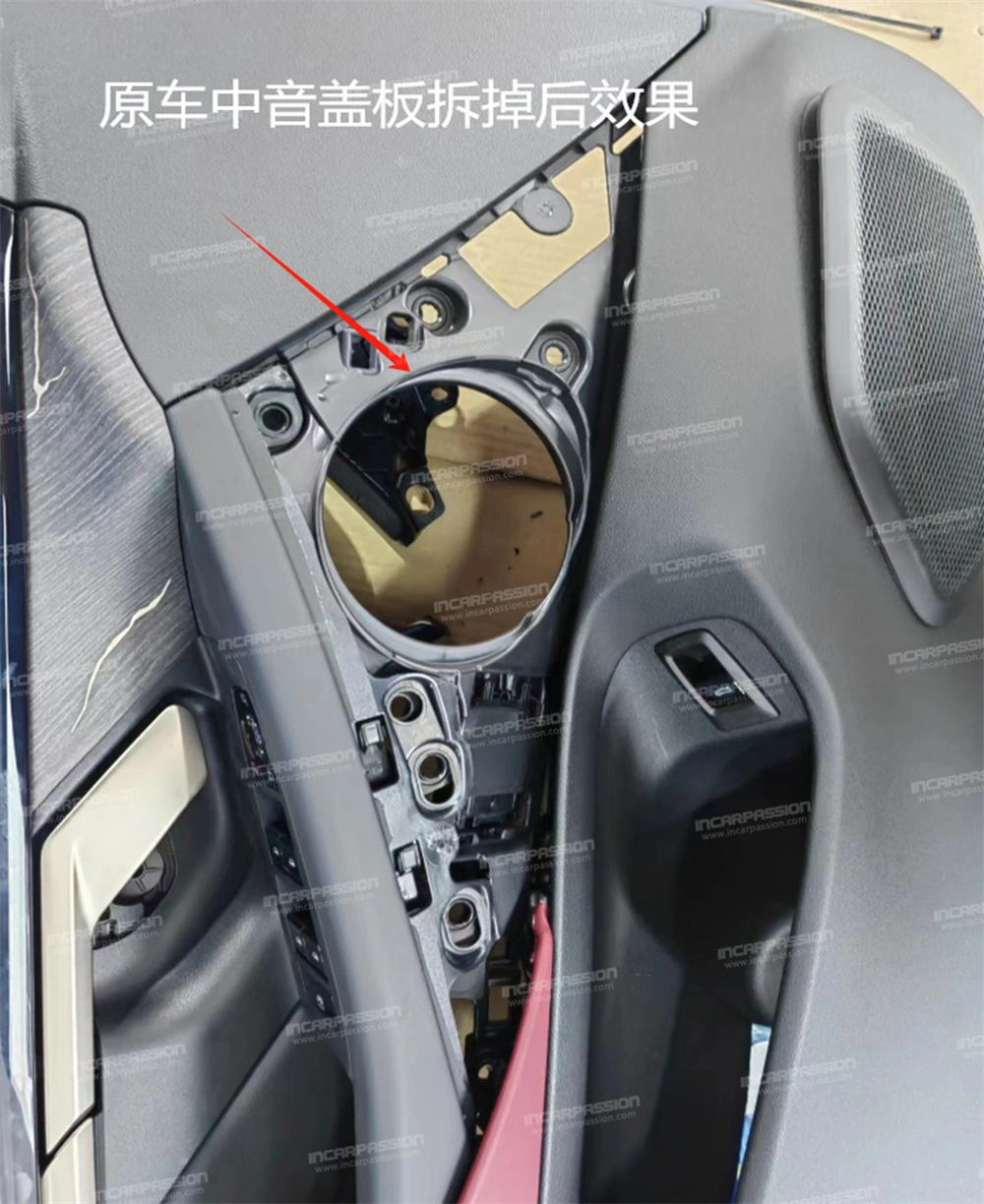

- 13. The original car’s mid – range speaker cover
-

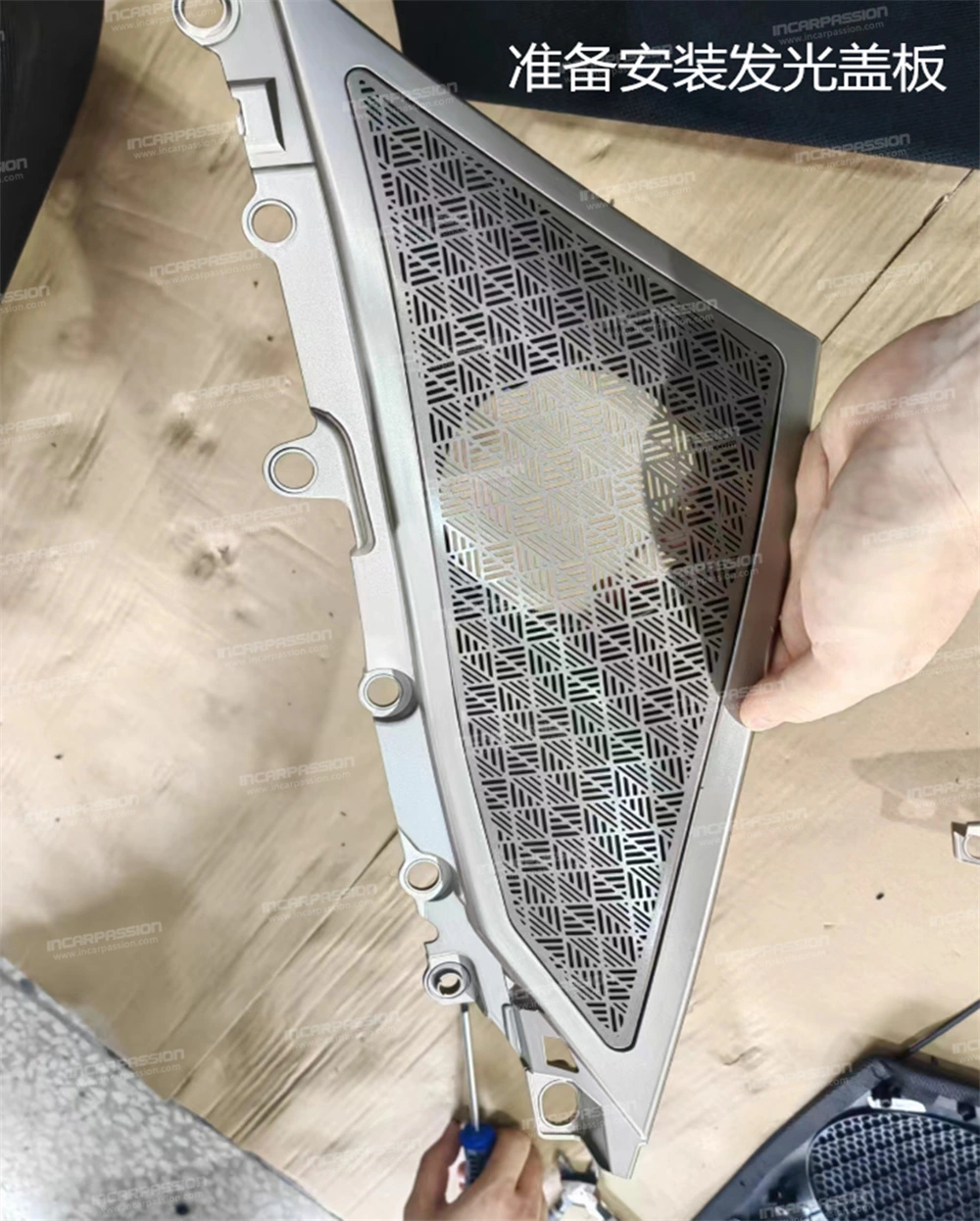

- 14. Prepare to install the luminous cover
-

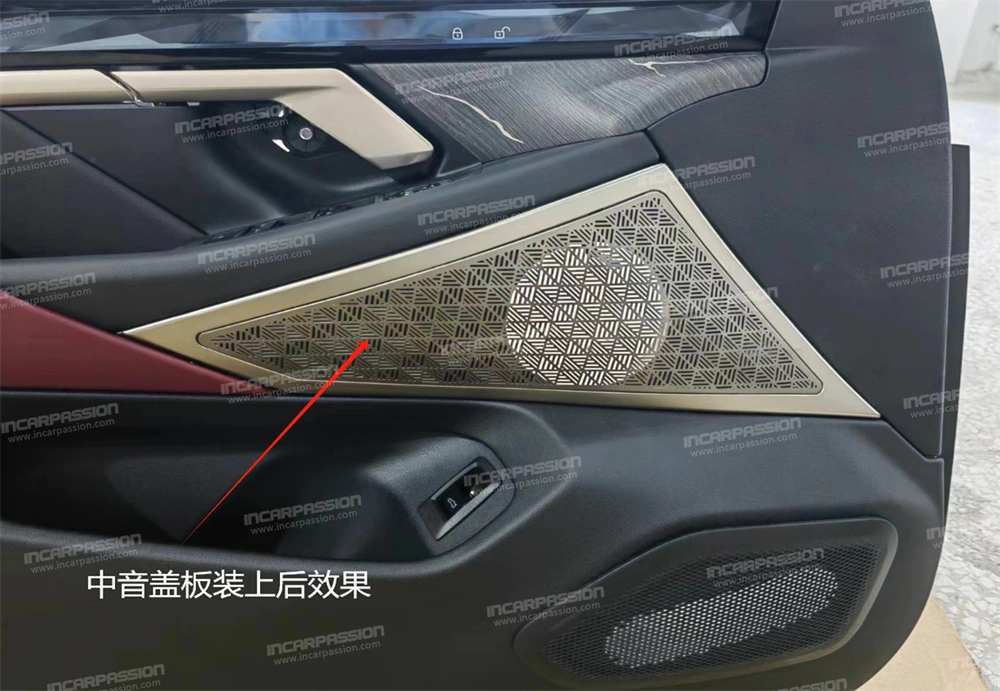

- 15. The effect after installing the mid – range speaker cover
-
- 16. After replacing the cover, lock the provided screws
-

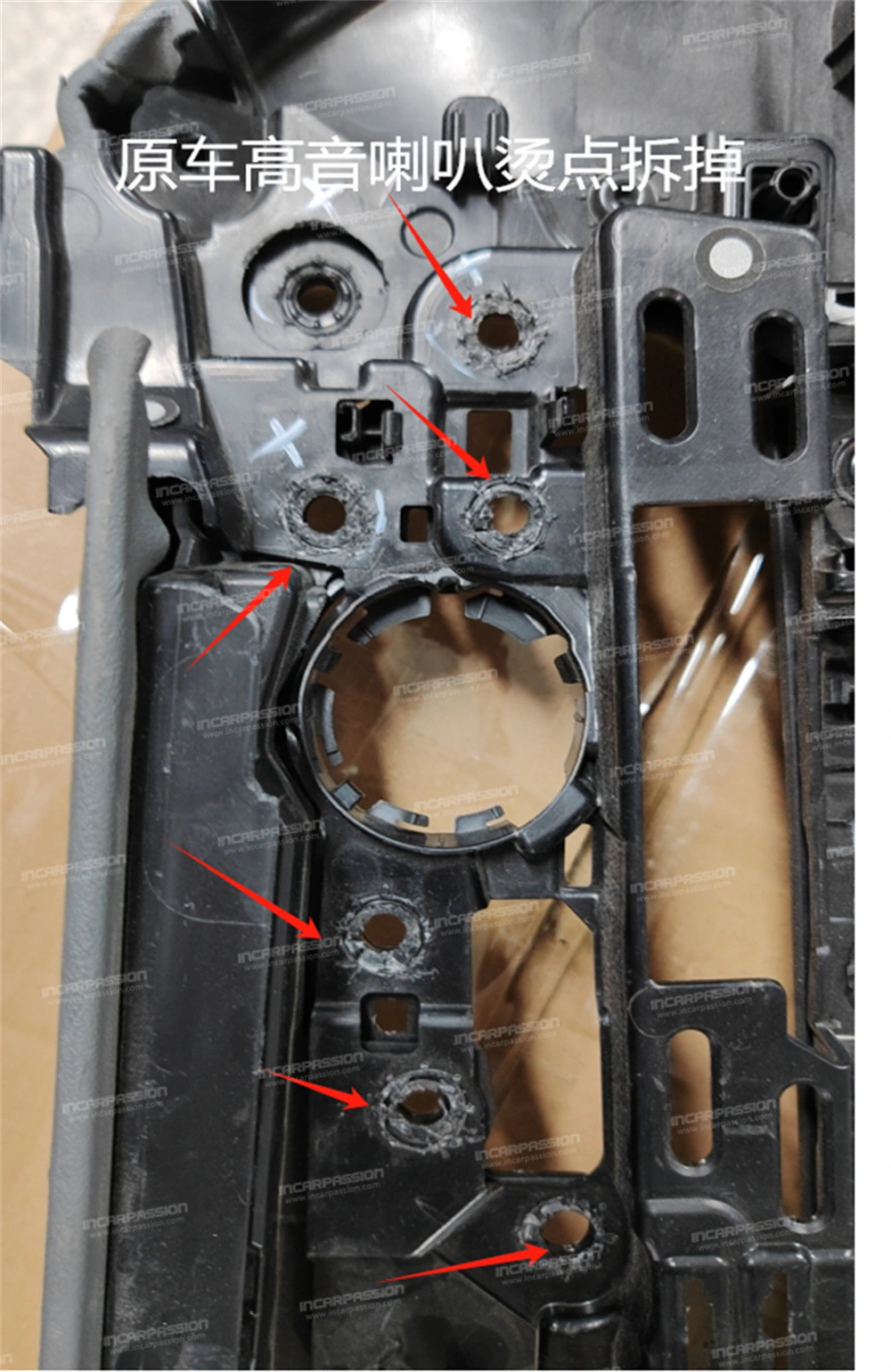

- 17. Remove the heat – staked points of the original car’s tweeter
-
- 18. Install the cover plate and lock the screws.
-

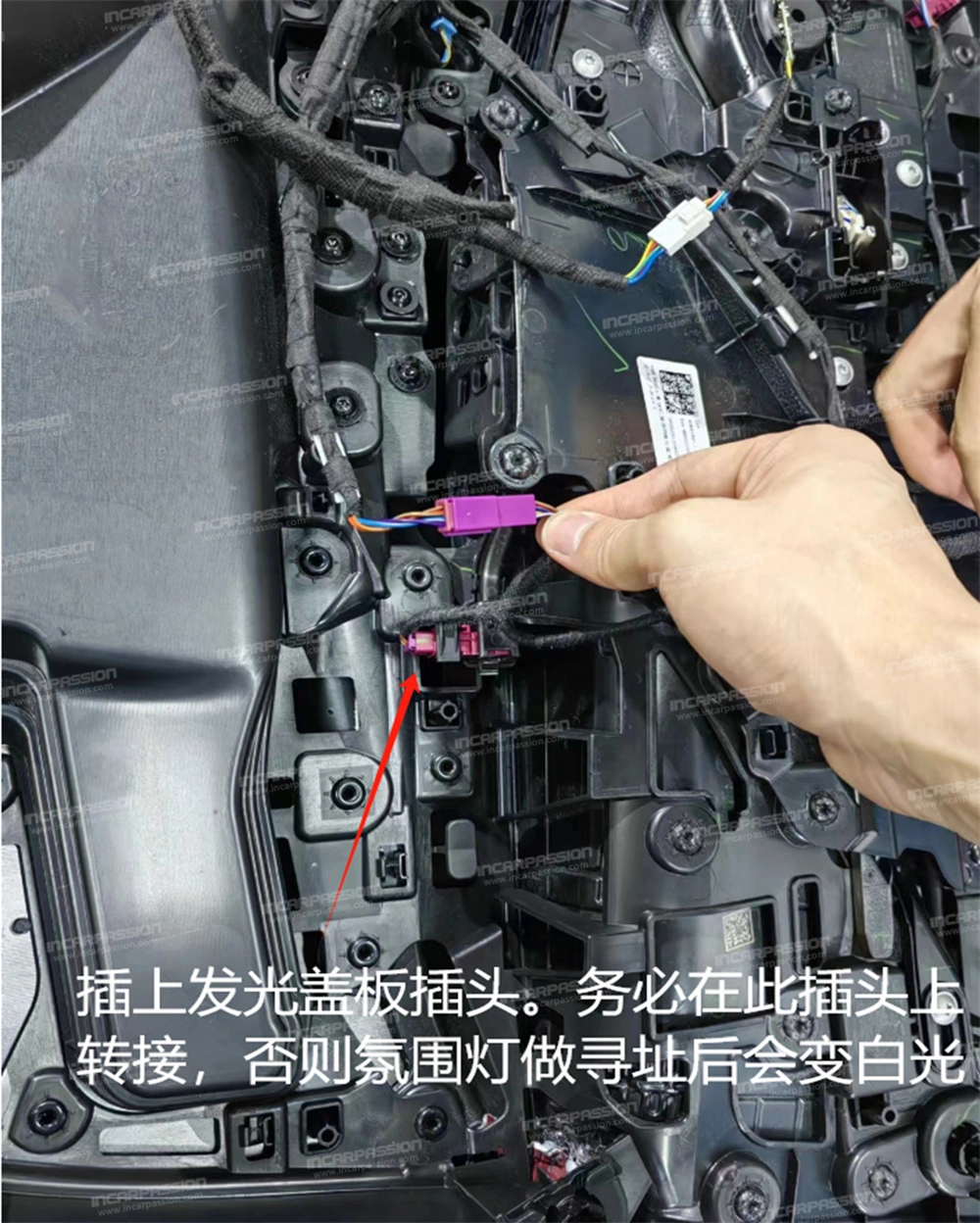

- 19. Plug in the connector of the luminous cover plate. Make sure to make a connection at this connector. Otherwise, the ambient light will turn white after addressing.
-

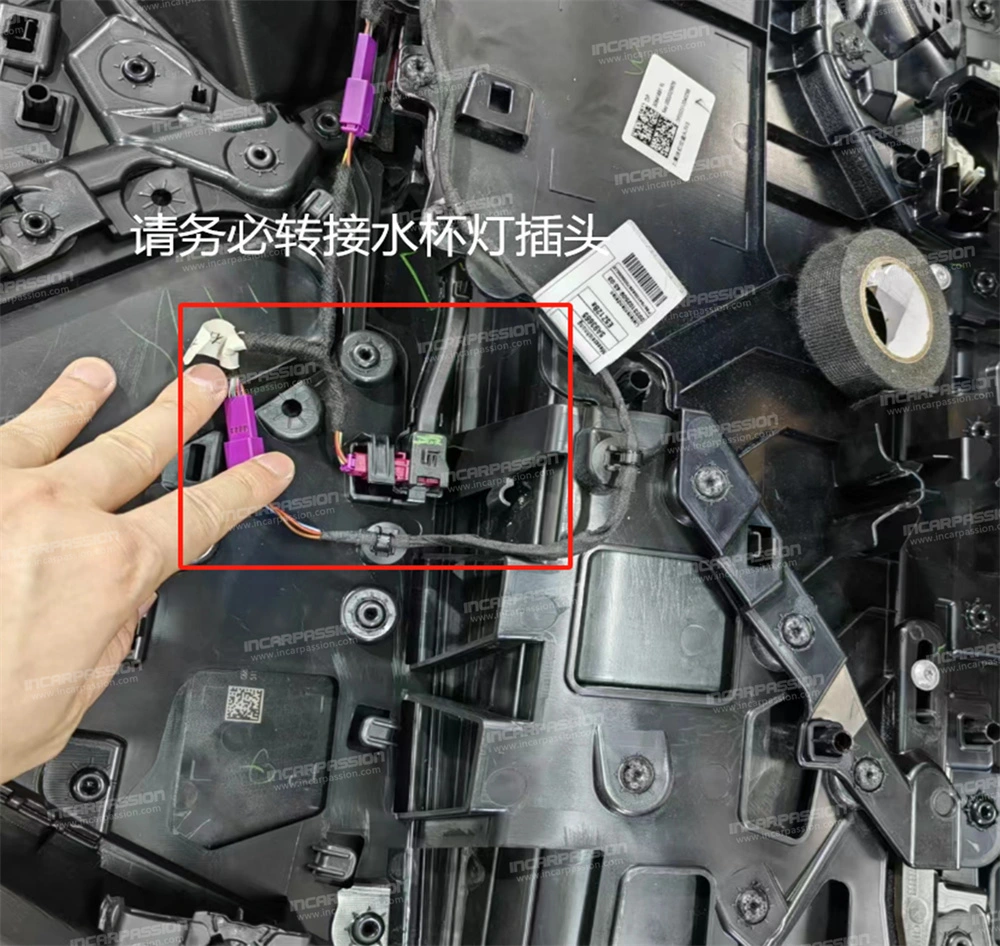

- 20. Please make sure to connect the cup – holder light connector.
-

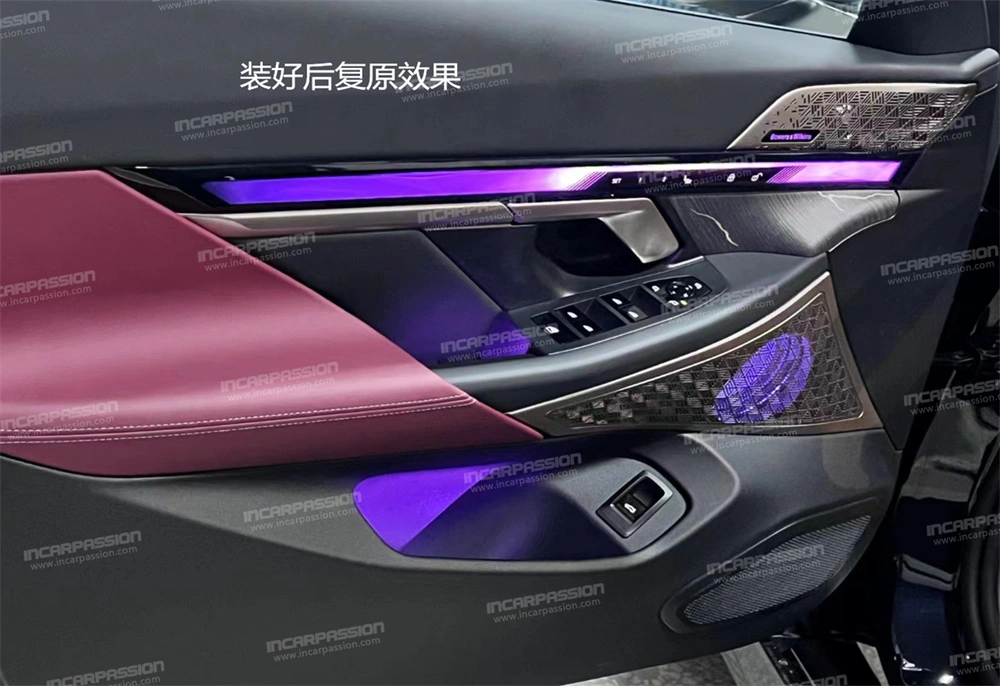

- 21. The restoration effect after installation.
-

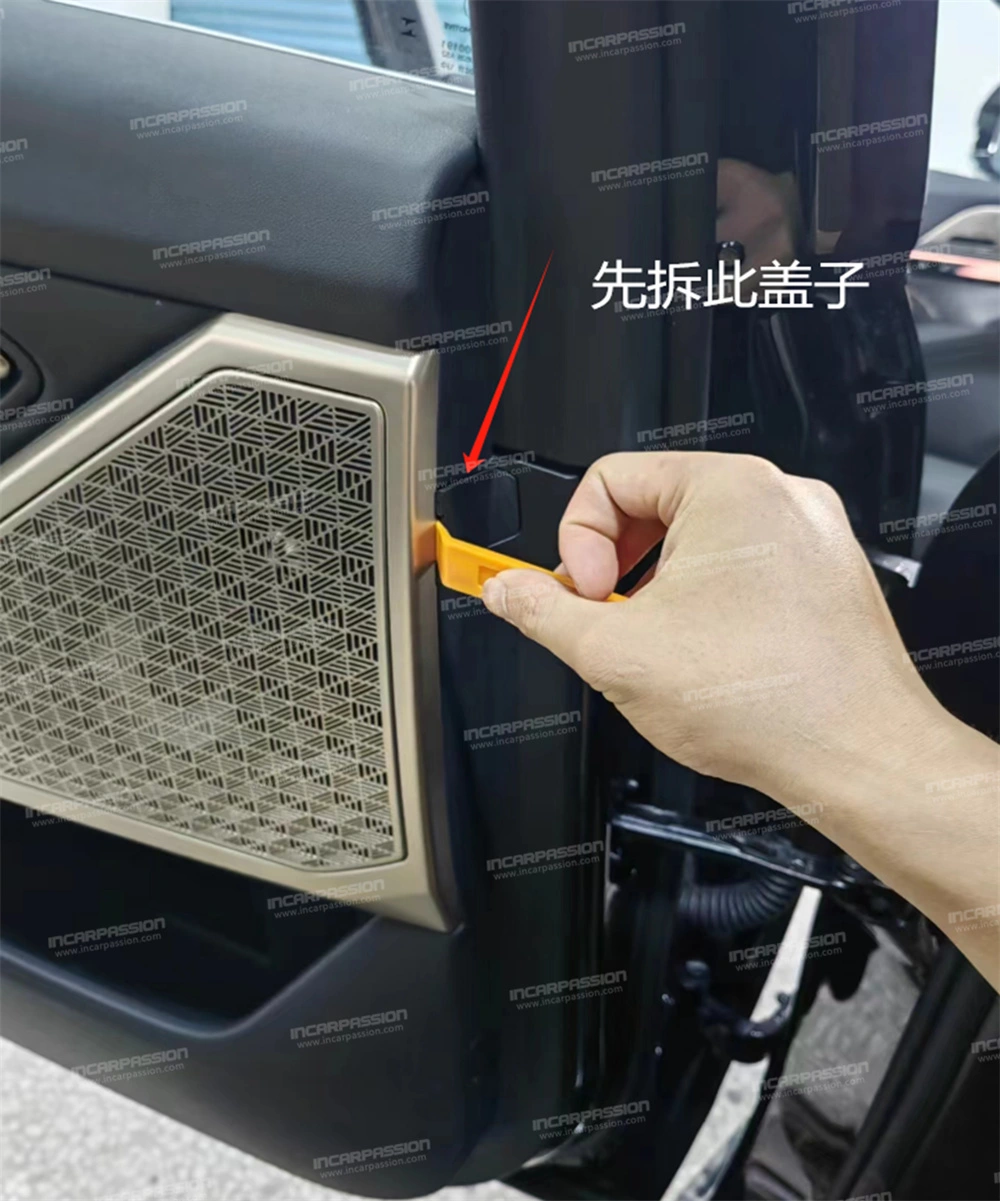

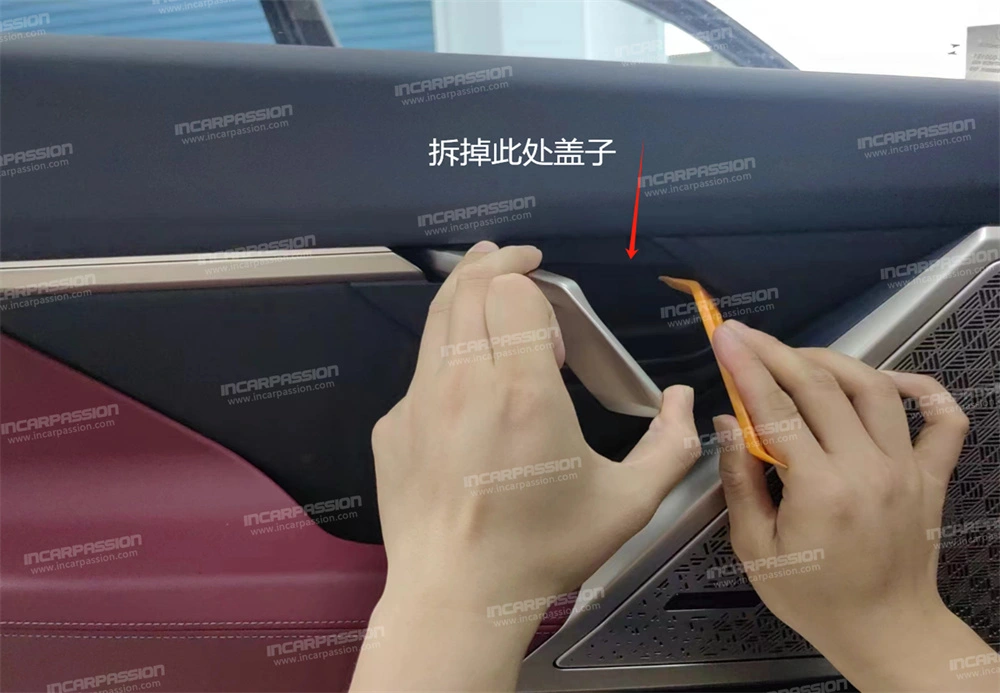

- 22. Remove this cover first.
-

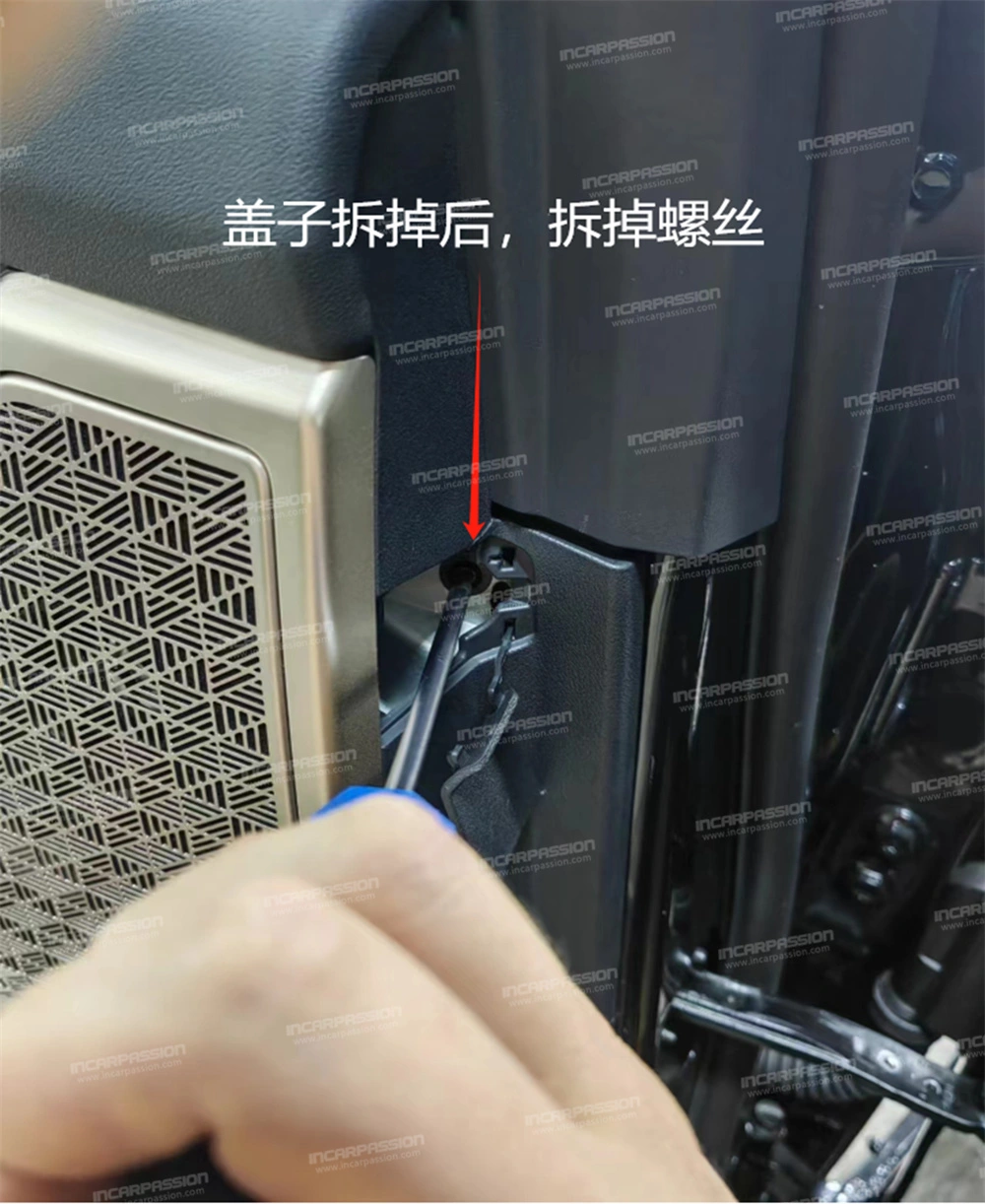

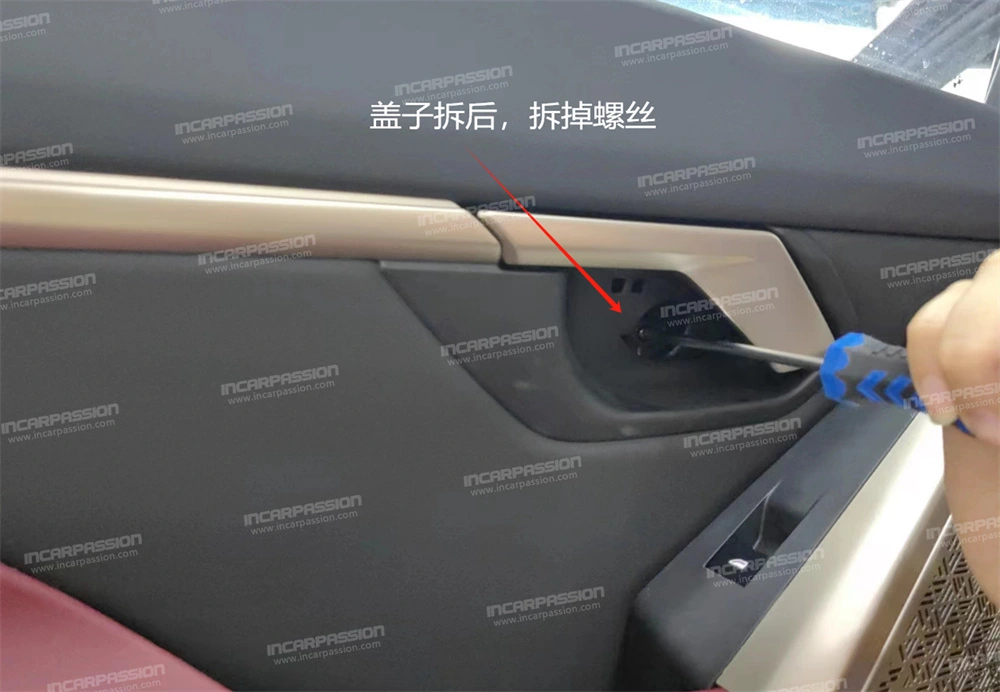

- 23. After removing the cover, remove the screws.
-

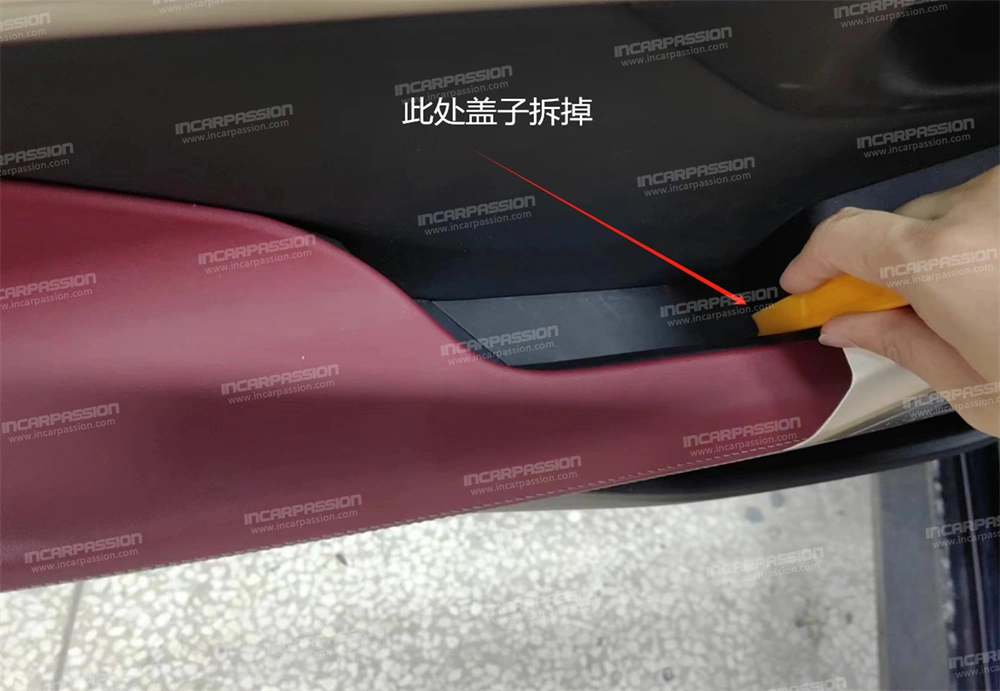

- 24. Remove the cover here.
-
- 26. Remove the cover here.
-

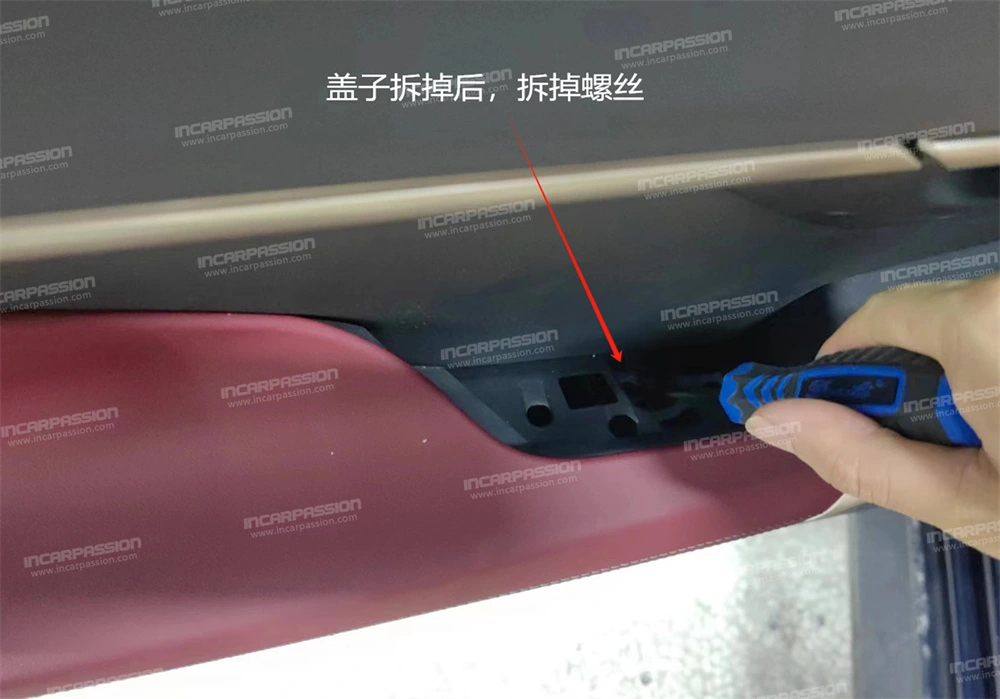

- 27. After removing the cover, remove the screws.
-
- 28. There are 3 screws in the rear – door. After removing the screws, use a pry – plate to remove the door panel.
-

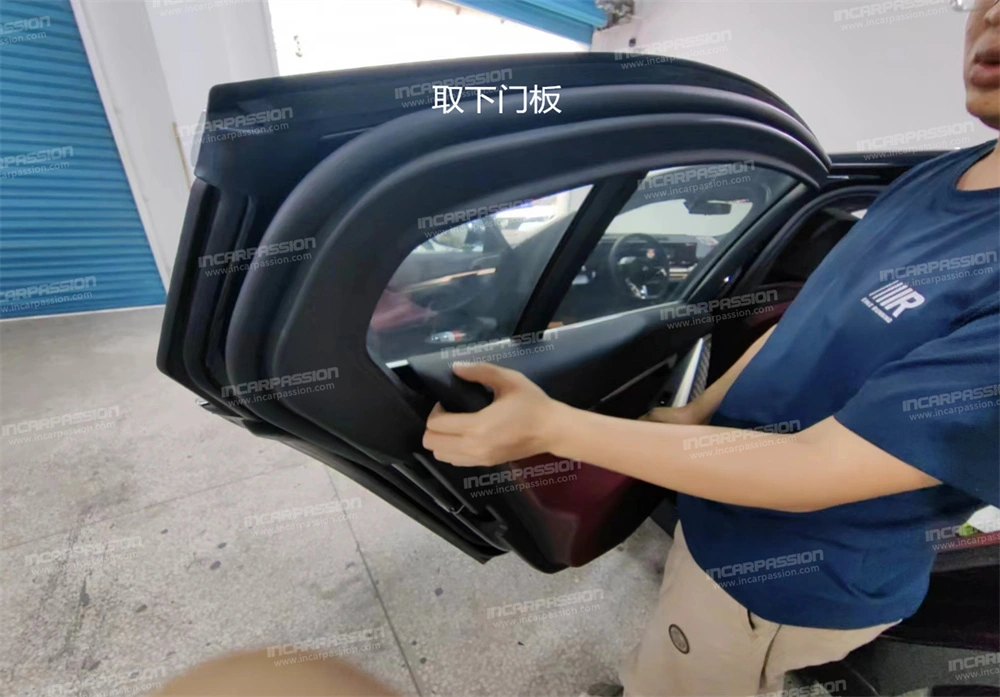

- 29. Remove the door panel.
-

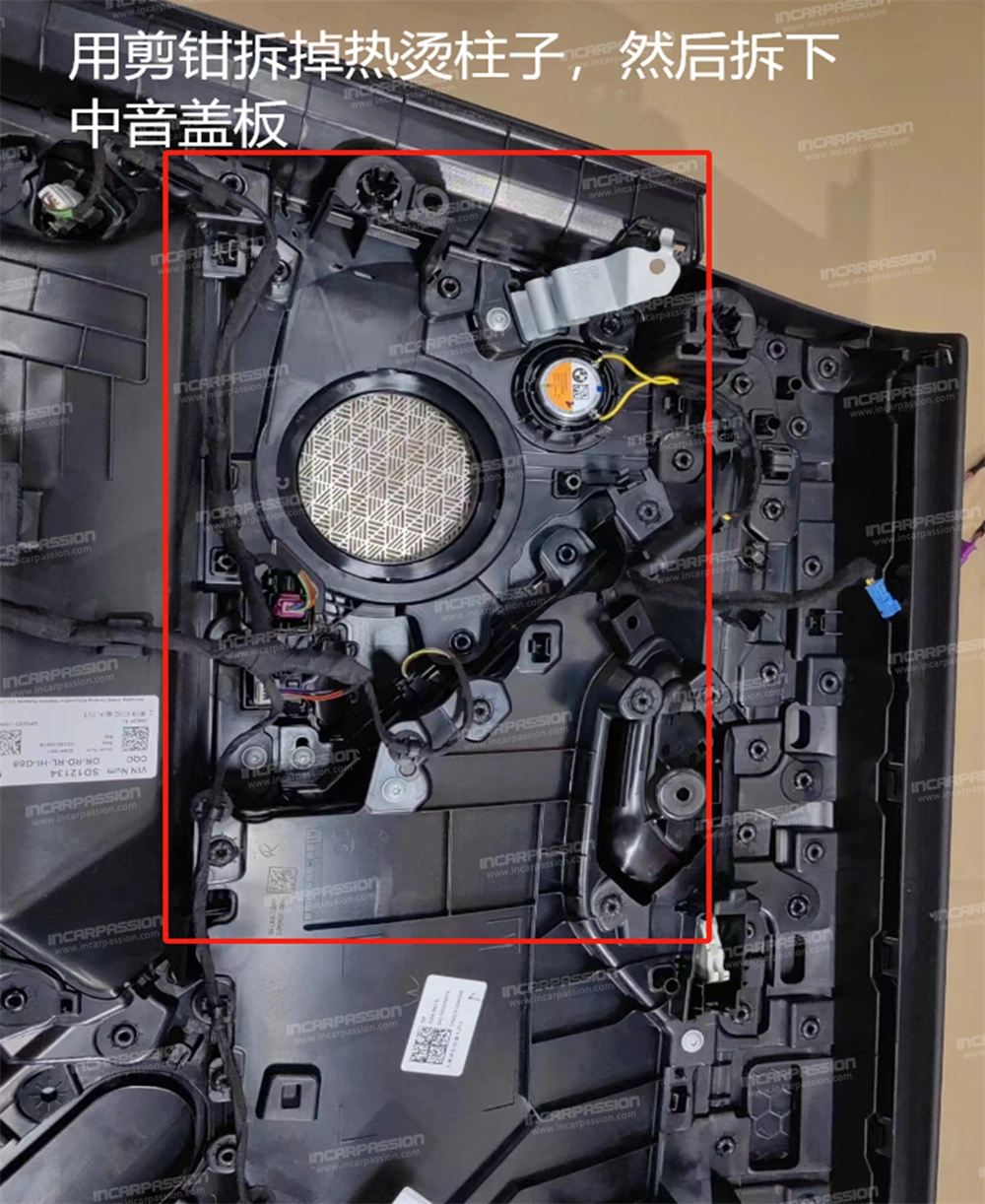

- 30. Use wire – cutters to remove the heat – staked posts, and then remove the mid – range speaker cover.
-

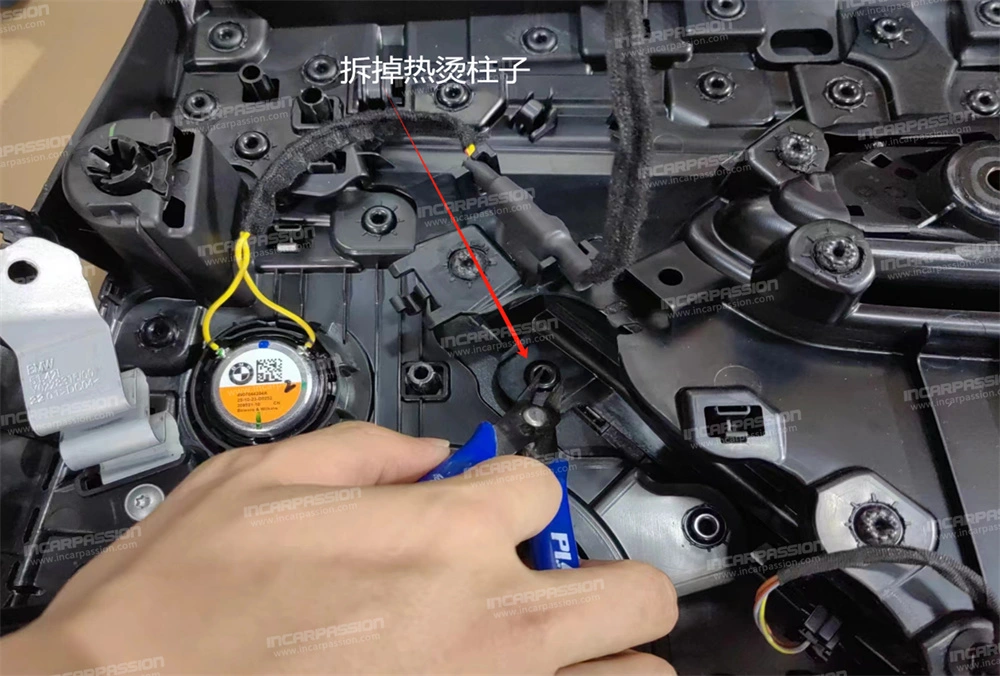

- 31. Remove the heat – staked posts.
-

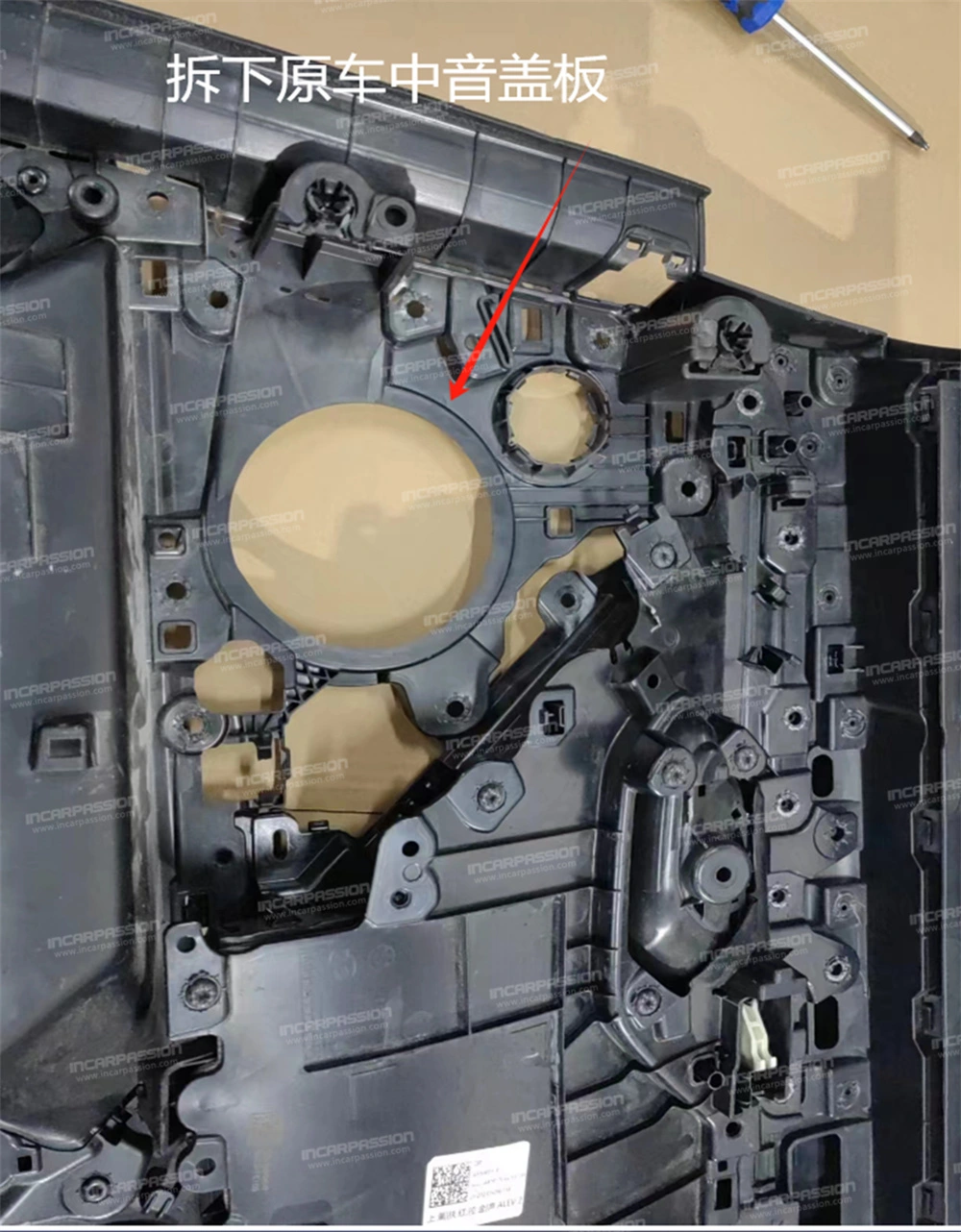

- 32. Remove the original car’s mid – range speaker cover.
-
- 33. Install the luminous cover of the rear – door mid – range speaker.
-

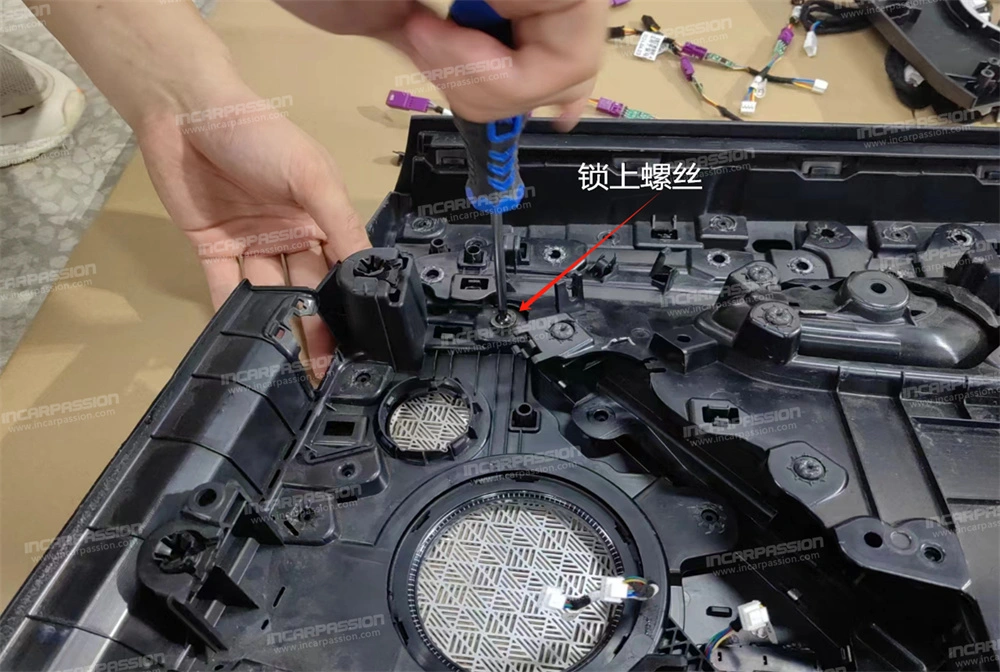

- 34. Lock the screws.
-

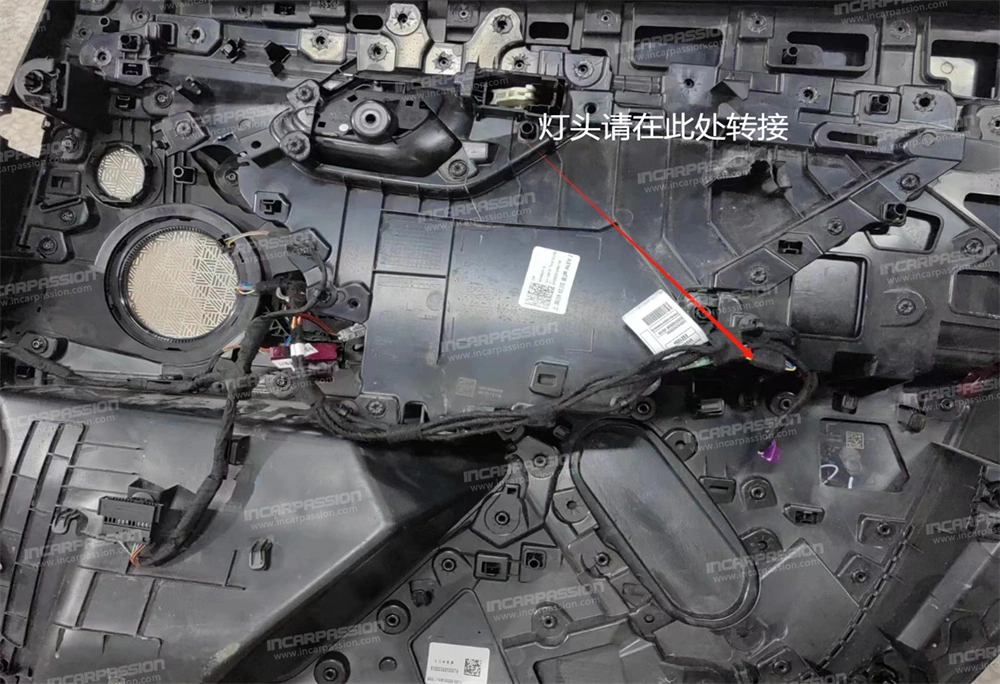

- 35. Please make a connection for the light – head here.
